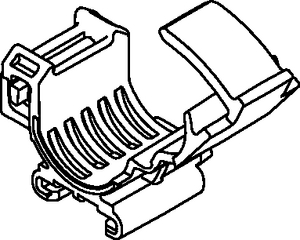

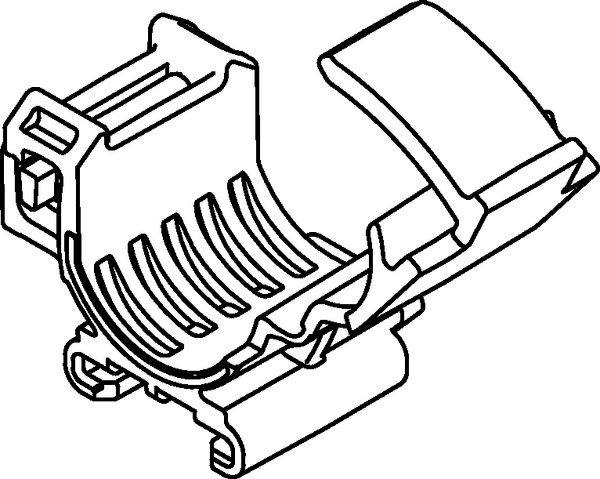

Ratchet O-Clamp

Art.-No. 151-04072

| ROC15-19SLOT17-PA66HIRHSUV-BK

|

Add to watchlist

Downloads

More products in this product group:

Ratchet O-Clamp

Base Data

Colour	Black (BK)
Fixation Method	Connector Clip
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Min.Tensile Strength	445N
PART DESCRIPTION	ROC15-19SLOT17-PA66HIRHSUV-BK
Package Content	1000Pack
Package Content packed in	bag
Product Group	Ratchet O-Clamp
Type	ROC15-19SLOT17
Type of connection	USCAR17
UV-Stabilised	Yes

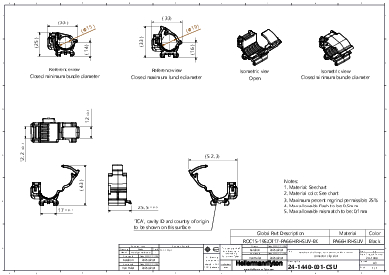

Product Dimensions

Bundle ⌀	15.0-19.0mm
Bundle ⌀ max.	19.0mm
Bundle ⌀ min.	15.0mm
Height (H)	43mm
Length (L)	52.3mm
Width (W)	25.5mm

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Reusable (Yes/No)	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	MX
GTIN-13 / EAN	4031026764573
Packaging 1 - Qty	1000
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.37465m
Packaging 3 - Length (m)	0.59055m
Packaging 3 - Type	carton
Packaging 3 - Volume (m³)	0.0646m³
Packaging 3 - Width (m)	0.2921m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	31162306
