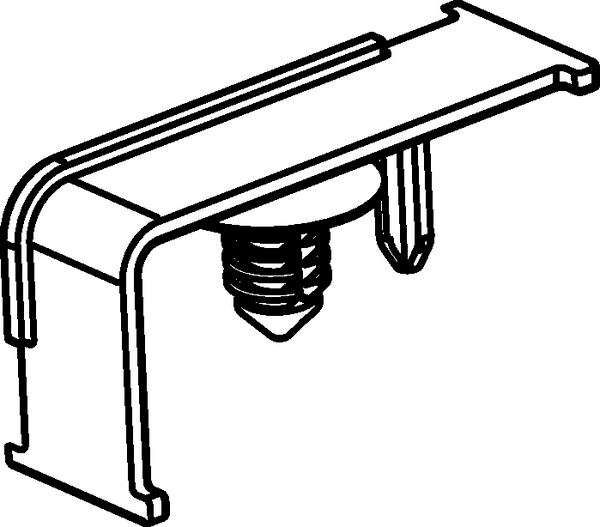

Bundling clip for hole (round), L=68.0mm, black, 4000pcs.
Art.-No. 151-02527 | TC20LFT6.5-TS-PA66HIRHS-BK

Copied
Application Bundling clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using bundle or cable ties. The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standard bundling clips are available as well as standoff and stud mount versions.
Colour Black (BK)
Fixation Method Fir Tree
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION TC20LFT6.5-TS-PA66HIRHS-BK
Pack Cont. 4000pcs.
Package Content packed in carton
Type TC20LFT6.5-TS
Bundling Bar Length 68.0mm
Height (H) 24.2mm
Length (L) 46.2mm
Panel Thickness max. 0.6 - 5.0mm
Width (W) 16.0mm
for Hole ⌀ (FH) 6.3 - 6.7 mm
for Panel Thickness min - max 0.6 - 5 mm
Operating Temperature -40 °C to +105 °C
Country of Origin CN
GTIN-13 / EAN 4031026611037
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
