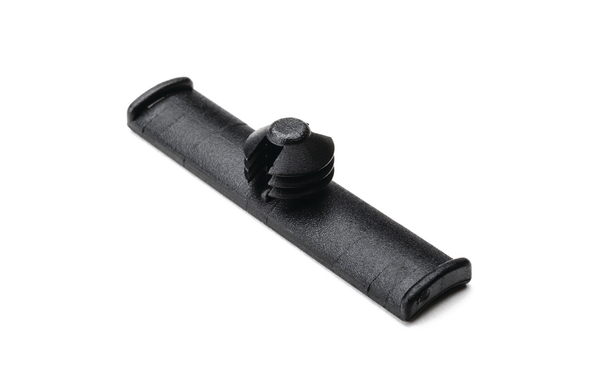

Bundling clip for hole (round), L=37.0mm, black, 1000pcs.
Art.-No. 150-95500 | TC5FT6S-PA66HIRHS-BK

The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters.

More products in this product group:

Application	These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes.
Brand Family	BC-Series
Color	Black (BK)
Description	HellermannTyton Bundling Clips are designed to provide simple and easy methods for securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using tape or cable ties.
PART DESCRIPTION	TC5FT6S-PA66HIRHS-BK
Packaging Type	pack
Part No.	150-95500
Product family	Bundling Clips
Product family	Bundling Clips
Short Desc.	Bundling Clip with Fir Tree, 1.46" Long, 0.03" - 0.06" Panel Thickness, PA66HIRHS, Bk, 1000/pkg
Type	TC5FT6S
UV Resistant	No


Fixation Method	Fir Tree
Height (imperial)	0.32"
Height (metric)	8.2mm
Height 2 (imperial)	0.2"
Height 2 (metric)	5.0mm
Length (imperial)	1.46"
Length (metric)	37.0mm
Max. Mounting Hole Diameter (imperial)	0.28"
Max. Panel Thickness (imperial)	0.06"
Max. Panel Thickness (metric)	1.5mm
Min. Mounting Hole Diameter (imperial)	0.25"
Min. Panel Thickness (imperial)	0.03"
Min. Panel Thickness (metric)	0.75mm
Mounting Hole Diameter (imperial)	0.25 - 0.28 "
Mounting Hole Diameter (metric)	6.4 - 7.1 mm
Mounting Hole Shape	Circular
Panel Thickness (imperial)	0.03 - 0.06"
Panel Thickness (metric)	0.75 - 1.5mm
Tape Bar Length (imperial)	1.46"
Tape Bar Length (metric)	37.0mm
Width (imperial)	0.32"
Width (metric)	8.0mm

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Material	PA66HIRHS
Material	Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Operating Temperature	-40°F to +221°F (-40°C to +105°C)
Prop65 Warning	No
REACH Conformity	Yes
ROHS compliant	Yes
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No


Customs Number (Schedule B)	3926909988
Harmonized Tariff Schedule Code	3926.90.9989
Packaging 1 - Weight (kg)	0.588kg
Pkg. Qty.	1000
Pkg. Qty.	1000Pieces
