Keystone Jacks RJ45FC6

Category 6 Jacks, Article number: 852-25068

Features

  • Industry standard modular 'Keystone' dimensions
  • Exceeds Category 6 performance standards
  • 110 IDC termination
  • 568A and 568B wiring options
  • Rear cable tie point
  • 12 coloured jack options
  • Palm tool for easy on site installation
  • Backward compatible with Category 5e, Category 5 and voice

Certifications & Approvals

Application

When using HellermannTyton’s modular jacks, patch panels, and patch cords with approved horizontal cables, the GigaBand® Category 6 and MegaBand® Category 5e systems far exceed the TIA requirements for structured cabling systems. HellermannTyton’s modular jacks are an integral part of the Category 6 and Category 5e systems, offering quality, versatility and reliability.

Quality
• Standard keystone style interface
• RJ45 terminated to a 110 IDC PCB connector
• Jack life a maximum of 1,000 insertions
• Contact set constructed of phosphor bronze material with 50 micro-inch gold plating
• Components manufactured from UL94V-0 thermoplastic material
• Unique strain relief design secures cable terminations
• Innovative crosstalk cancellation technology – 10 internal contacts (two extra to cancel out crosstalk) and 8 external contacts in standard configuration to accept industry standard patch cords
• Staggered contacts provide superior performance

Versatility
• Configured with both 568A and 568B wiring schemes
• IDC accepts 22-26 AWG solid twisted-pair cable
• Available in 12 colors to match any faceplate or color coding identification
• Palm tool available for easy on-site installation

Reliability
• RJ45 jacks are factory tested 200 times with an RJ11 plug (4P or 6P) to ensure there is no damage to the contacts.
• Each jack is individually tested three times to ensure quality performance
• IDC is factory tested to 50 terminations

Colour White (WH)
Description HellermannTyton's Category 6 modular Keystone Jack is designed to future proof installations. Its patented contact design uses innovative alien crosstalk cancellation technology, ensuring industry leading performance. Adapters are available to enable the Category 6 Keystone Jack to be assembled with the GigaBand/Alpha Snap shuttered outlet and 6C Angled Module. The Category 6 keystone jacks are designed to support any data or voice protocol that is capable of running over a Category 6 cabling system.

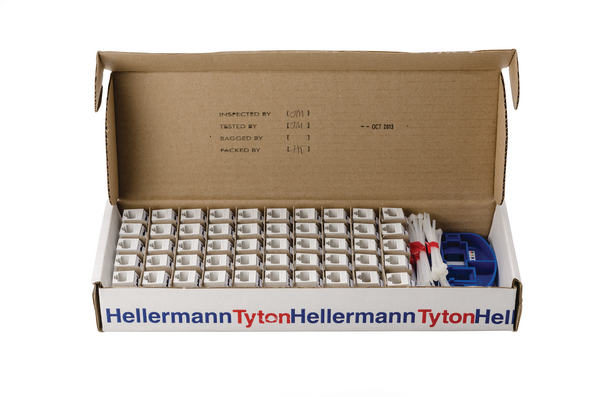

Features and Benefits HellermannTyton offers selected flush mount keystone jacks in bulk packs of 50. The bulk pack includes convenient partitions for each jack and includes the palm installation tool and strain relief ties.
GLOBAL PART DESCRIPTION RJ45FC6
Pack Cont. 50
Package Quantity per box
Performance Category Category 6 (Class E)
Port count 1
Product Family Category 6 Jacks
Product Group Keystone Jacks
Technical Description Available in the following colours: W(White), FW(Office White), I(Ivory), GRN(Green), RED(Red), BLU(Blue), BRN(Brown), YEL(Yellow), ORN(Orange), GRY(Grey) and BLK(Black). Bulk packs of 50 keystone jacks are available on request. The Category 6 Keystone Jacks are tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 6. The Alpha Label software package is available for download at www.htdata.co.uk and enables straight forward port labelling. The Category 6 Keystone Jacks offer backward compatibility with Category 5e, Category 5 and voice products.
Depth (D) 42.0mm
Height (H) 23.0mm
Width (W) 19.0mm
Specifications
UL-File Number E216789
Dimensions W x H x D 19.0 mm x 23.0 mm x 42.0 mm
EAN / GTIN 5022660831171
Weight 0.5kg
UNSPSC Key 39121444
