Grommet strip, T=2.3mm, W=4.4mm, W2=1.2mm, H=5.3mm, H2=4.4mm, -40 °C to +85 °C, natural, 100pcs.

Art.-No. 251-06002

| TE-024-PA6-NA

|

Very flexible
Easy to apply
Protects cables from chafing on bulkheads

Add to watchlist

Downloads

More products in this product group:

Edge protection

Base Data

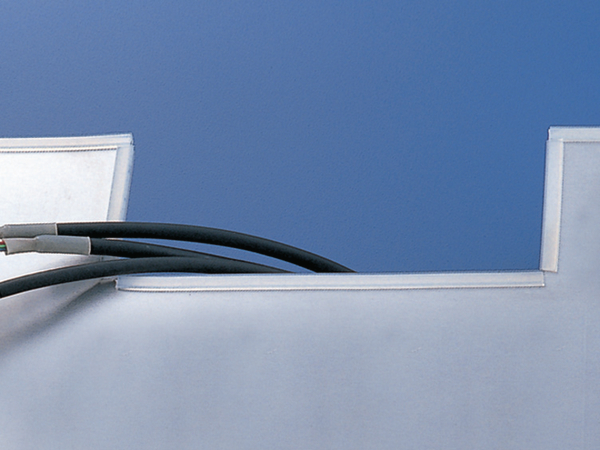

Application	EdgeGuard is used to cover panel edging to prevent chafing and provide an attractive finish.
Colour	Natural (NA)
Material	Polyamide 6 (PA6)
PART DESCRIPTION	TE-024-PA6-NA
Package Content	100pcs.
Package Content packed in	bag
Product Family	EdgeGuard
Product Group	Edge protection
Type	TE-024
Typical Application	EdgeGuard is used to cover panel edging to prevent chafing and provide an attractive finish.

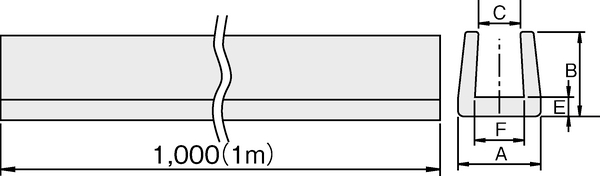

Product Dimensions

Height (H)	5.3mm
Height (H2)	4.4mm
Length (L)	1m
Panel Thickness	2.3mm
Wall (WT)	0.9mm
Width (W)	4.4mm
Width (W2)	1.2mm
Width (W3)	2.4mm
for Panel Thickness min - max	1.6 - 2.3 mm

Specifications

Flammability	UL 94 HB
Operating Temperature	-40 °C to +85 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	JP
GTIN-13 / EAN	4944387509304

More Information

ETIM 7.0 Key	EC001937
ETIM 8.0 Key	EC001937
ETIM 9.0 Key	EC001937
