Grommet strip, T=1.6mm, W=3.7mm, W2=1.6mm, H=5.2mm, H2=4.0mm, -20 °C to +50 °C, black, 20m

Art.-No. 251-06103

| THA-016-PE-BK

|

Very flexible
Easy to apply
Protects cables from chafing on bulkheads

Add to watchlist

Downloads

More products in this product group:

Edge protection

Base Data

Application	EdgeGuard is used to cover panel edging to prevent chafing and provide an attractive finish.
Colour	Black (BK)

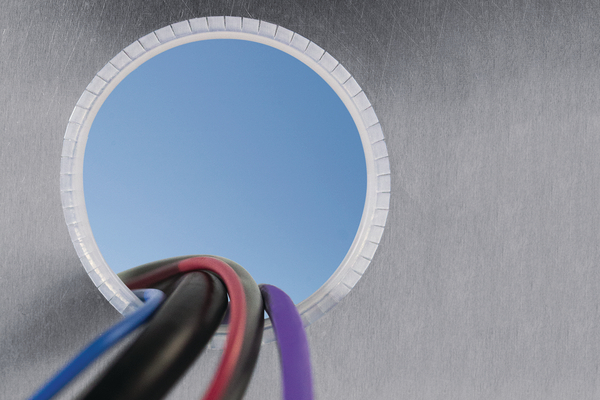

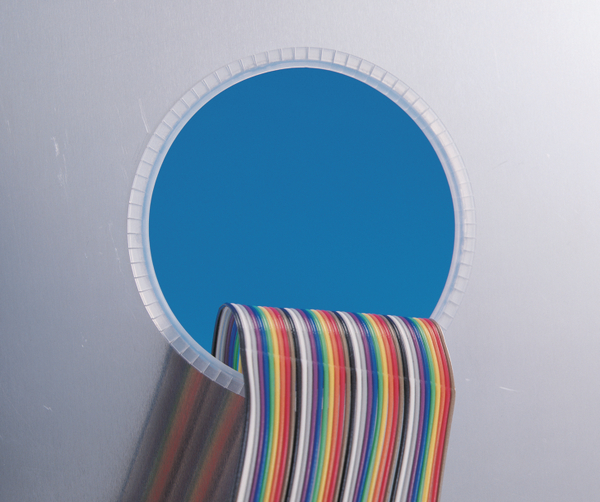

Description	Protect cables and wires being passed through cutouts in panels.
Material	Polyethylene, adhesive (PE)
PART DESCRIPTION	THA-016-PE-BK
Package Content	20m
Package Content packed in	box
Product Family	EdgeGuard
Product Group	Edge protection
Type	THA-016

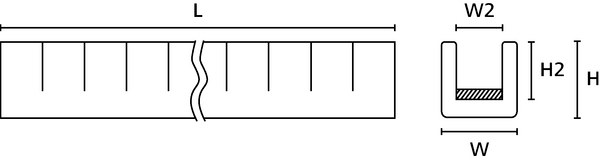

Product Dimensions

Height (H)	5.2mm
Height (H2)	4.0mm
Length (L)	20m
Panel Thickness	1.6mm
Wall (WT)	1.2mm
Width (W)	3.7mm
Width (W2)	1.6mm
for Panel Thickness min - max	- 1.6

Specifications

Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-20 °C to +50 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	JP
GTIN-13 / EAN	4944387960198

More Information

ETIM 7.0 Key	EC001937
ETIM 8.0 Key	EC001937
ETIM 9.0 Key	EC001937
