MCCE - Multi Customer Connections Enclosure
Art.-No. 857-02077 | MCCE-X1XXX31X

Copied

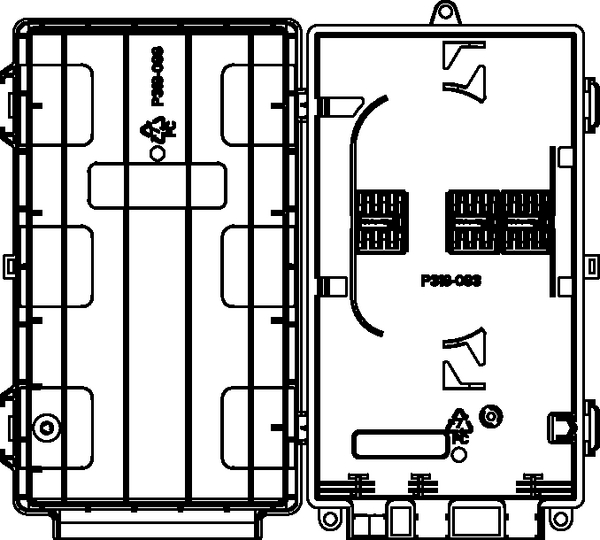

Internal view of MCCE.
MCCE (side view).
MCCE (front view).

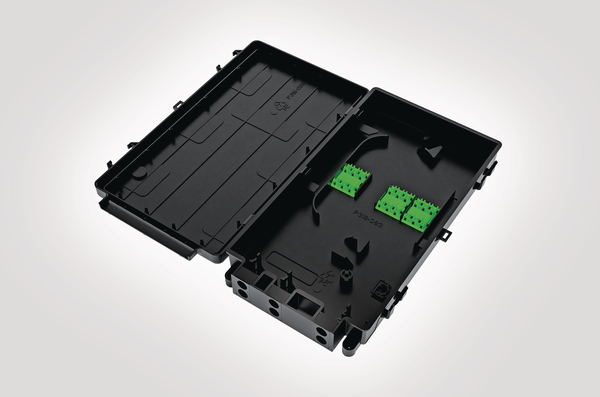

External view of MCCE.
MCCE (internal view).
MCCE (side view).
MCCE (rear view).
MCCE (top view).
MCCE (bottom view).

    • Capacity for up to 12 Customer Connections
    • 18 x 3A fibre splices
    • Positive fibre management (30mm minimum bend radius)
    • IP54 rating
    • Low Profile
    • Tamper-proof
    Add to watchlist
    Downloads CAD-Download
    Color Black (BK)
    Content 3 x 3A Splice Bridges
    Cable Entry/Exit Kit 6 - 8mm
    Mechanical Fixing Kit
    Wall Mounting Kit
    Laser Label
    PART DESCRIPTION MCCE-X1XXX31X
    Packaging Type box
    Part No. 857-02077
    Splice Capacity 18
    Technical Description The Multi Customer Connection Enclosure (MCCE) is a Building Entry Point (BEP) enclosure which manages Point to Point (P2P) network configurations. The closure is manufactured from UV stable ABS with a hinged lid which locks in the open position to allow for quick and clear access to the internal fibre. The closure has 6 entry/exit ports at the bottom of the closure which are suitable for cables and ducts up to a maximum diameter of 8mm. A loop through facility allows for single fibre elements to be removed and spliced whilst the remaining fibres can be fed on to the next connection point and a splice capacity for up to 18 3A splices. Mechanical fixing is provided to secure all incoming/outgoing cables/blown fibre ducts and to provide strain relief where necessary.
    Type MCCE-X1XXX31X
    Depth (metric) 37mm
    Height (metric) 233mm
    Max. Cable Diameter (metric) 8.0mm
    Min. Cable Diameter (metric) 6.0mm
    Width (metric) 135mm
    Material PCUV
    Material Polycarbonate, UV Stabilized (PCUV)
    REACH Conformity Yes
    ROHS compliant Yes
    Pkg. Qty. 20
