MDU S5 Splice Only with 18 SE MKII 3A trays for 432 horizontal splices
Art.-No. 857-03096
| MDU-S5S-C09A1
Copied
- Maximum 432 Fibre Splices
- Standard IR Fibre Management System (FMS)
- 18 SE MKII Trays with 3A Splice Bridges
- 6 FMS cable entry points
- Fitted Loop Through Anchor Gland
- Optional MDU Accessories
- IP54/IK08
- UV Stable / UL-94 V0 Rating
More products in this product group:
| Application | Designed for deployment within the last mile of the FTTx network, the HellermannTyton MDU S5 Splice Only enclosure can be used within a Point to Point (P2P) or Point to Multi Point (P2MP) with the addition of bare end PLC splitters. |
| Color | Light Gray (LTGY) |
| Content |
MDU S5 enclosure Central Standard IR Fibre Management System (FMS) 6 x Fibre Retention Blocks / FMS Entry Points 18 x SE MKII Splice Trays fitted with 2 x 3A Splice Bridges 1 x Loop Through Anchor Bracket 1 x Cable Entry Seal Kit (3-14mm range) 1 x Wall Mounting Kit |
| Description | The S5 Enclosure is an indoor/outdoor fiber demarcation solution engineered to accommodate multiple fiber drops to the home, apartment or small office building. The S5 accepts higher fiber count outdoor cables, allowing SC or LC pigtails to be spliced while the remaining fiber cable continues for subsequent connections. The splice tray folds to protect the fibers, making subscriber adapters accessible for pre-terminated outdoor fiber drop cable connections. The S5 can be mounted on the wall to deliver up 432 op[tical splices, 96 LC or 48 SC connections to single units within a home, apartment buildings or multiple suite office facilities. |
| PART DESCRIPTION | MDU-S5S-C09A1 |
| Packaging Type | EA |
| Product family | S5 Enclosures |
| Splice Capacity | 432 |
| Technical Description |

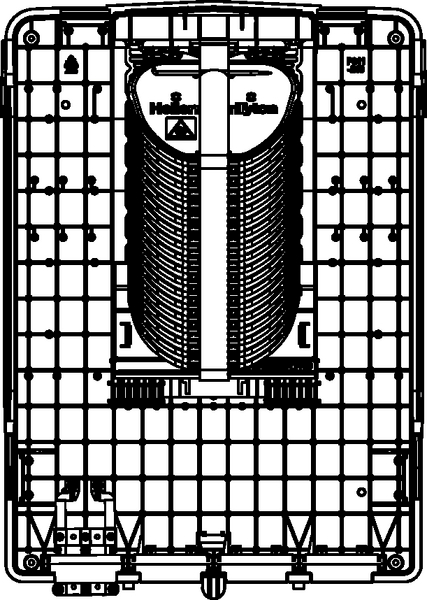

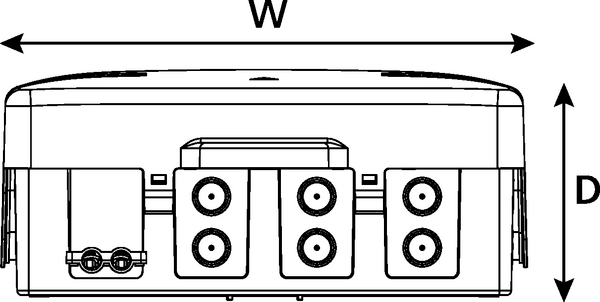

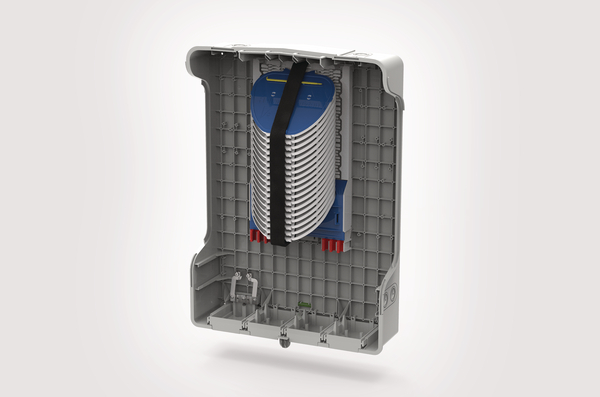

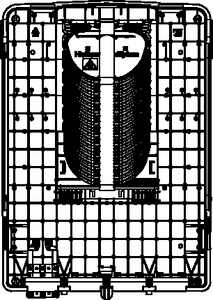

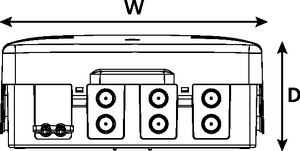

The largest MDU enclosure is 568 x 375 x 165mm (H x W x D) enclosure and manufactured in light grey (RAL 7035) ABS (Acrylonitrile Butadiene Styrene), UV stable with an IP54, IK08 and V0 rating. The MDU S5 cover can be customised with a moulded or labelled customer logo. The S5 S (Splice Only) can be configured with the standard IR Fibre Management System (FMS) which accommodates 18 SE IR MKII splice trays giving a maximum of 432 3A splices and up to 6 PLC splitters in the FMS block. The 6 red retaining blocks guide the fibre elements onto the FMS and their foam pads can be cut through to accommodate a range of fibre counts. A loop through anchor bracket is pre-fitted on the left port of the base. The dual outlet of the bracket allows for loop through applications. The black rubber seals cover a cable range of 3-14mm OD cable. An extensive range of optional accessories is available upon request and include lock, multi-drop seals (24 x 7mm), M20 and M25 cable glands (up to 18mm), loop through anchor kit, drop cable anchor brackets, SC or coloured splice trays, splitter holders for trays, internal or external loop storage baskets. |
| Type | MDU-S5S-C09A1 |
