28/05/2022

PET-Flame Retardant
Art.-No. 170-03071 | BSPFR188-PET-GY Details

  • Treated polyester material contains a combustion inhibitor for use in applications where flame retardancy is required
  • Braided design allows sleeving to expand by 150% to accommodate variations in wire bundle and eases installation
Colour Grey (GY)

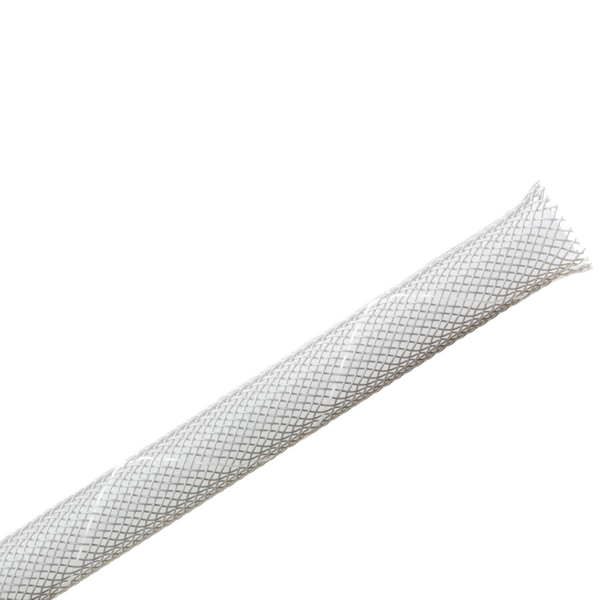

Description A flame retardant woven (threaded) polyester sleeving that is resistant to cuts and abrasion, and contains a combustion inhibitor allowing it to achieve a UL and CSA flame resistance rating of VW-1. Contains white tracer thread for easy identification.
Material Polyester (PET)
Open, post termination (Yes/No) No
Pack Cont. 68.58m
Package Content packed in reel
PART DESCRIPTION BSPFR188-PET-GY
Product Group PET-Flame Retardant
Short Description Flame Retardant Expandable Braided Sleeving, 0.13" Dia., Gray, 225.0 ft/Standard Reel
Bundle ∅ max. 6.4mm
Bundle ∅ min. 2.4mm
Diameter (D) 3.2mm
Length (L) 68.6m
Nominal ∅ 3.18mm
Nominal ∅ 0.125"
∅ D 0.13"
Abrasion Resistance Medium
CE Certification No
CSA Certified No
Flammability Mil-202, FAR 25, FMVSS 302, UL VW-1
Halogenfree Yes
Melting Point +250 °C
Operating Temperature - °C -70 °C to +125 °C
Specifications
Specifications UL 94 VW-1
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number E147924
Country of Origin US
GTIN-13 / EAN 4031026438399
Packaging 1 - Weight (kg) 0.18kg
Reel Length 225.0ft
Reel Length 68.6m
ETIM 7.0 Key EC001182
UNSPSC Key 39131602
