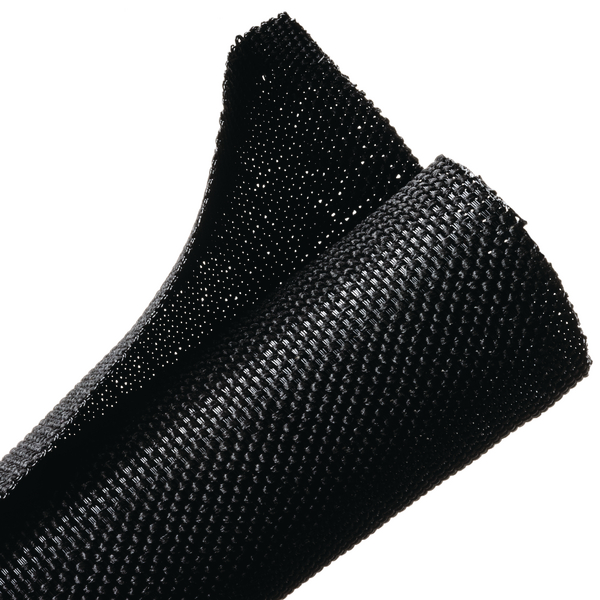

BSSWV1120B-PET-BK : BSSWV1120B
Art.-No. 170-03186 | BSSWV1120B-PET-BK Details

Colour Black (BK)
Material Polyester (PET)
Open, post termination (Yes/No) No
Pack Cont. 15.24m
Package Content packed in reel
PART DESCRIPTION BSSWV1120B-PET-BK
Bundle ∅ max. 38.1mm
Bundle ∅ min. 2.54mm
Diameter (D) 38.1mm
Length (L) 15.2m
Nominal ∅ 38.1mm
Nominal ∅ 1.5"
Wall (WT) 0.027"
Wall (WT) 0.68mm
∅ D 1.50"
Abrasion Resistance Medium
CE Certification No
CSA Certified No
Flammability UL 94 V0
Halogenfree Yes
Melting Point +250 °C
Operating Temperature - °C -70 °C to +125 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number E107055
Country of Origin US
GTIN-13 / EAN 4031026476636
Packaging 1 - Weight (kg) 1.02kg
Reel Length 50.0ft
Reel Length 15.24m
ETIM 7.0 Key EC001182
UNSPSC Key 39131602
