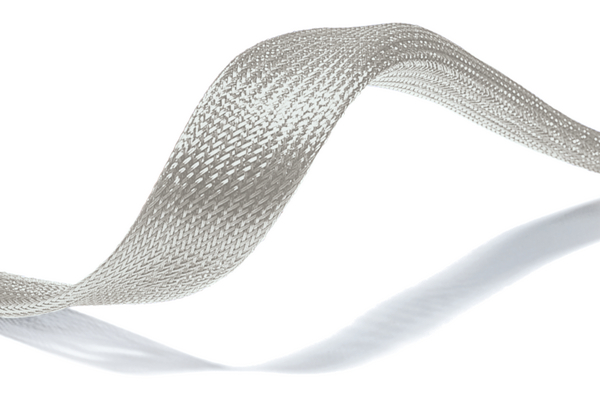

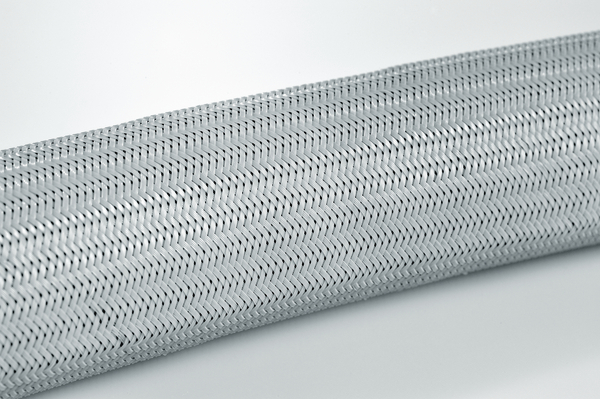

Polyamide 6.6 Braided Sleeving : HEGPA6610

Polyamide 6.6 braided sleeving grey 10mm x 100mArticle number: 170-21000

Features

  • Made from heavy-duty polyamide yarn

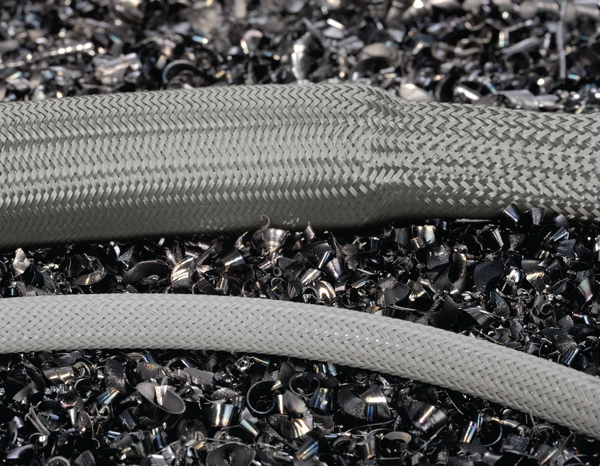

  • Excellent abrasion resistance
  • Highly flexible
  • Easy to apply over irregular shapes
  • Eases application by expanding when compressed
  • Very high surface covering

Certifications & Approvals

Application

Helagaine HEGPA66 is particularly suitable for vehicle manufacturing as well as plant construction.

Application Tool HSG0
Colour Grey (GY)
Open, post termination (Yes/No) No
Pack Cont. 100m
Package Quantity per metre
PART DESCRIPTION HEGPA6610-PA66-GY
Product Family Helagaine HEGPA66
Product Group Polyamide 6.6 Braided Sleeving
Short Description Polyamide 6.6 braided sleeving grey 10mm x 100m
Bundle ∅ max. 12mm
Bundle ∅ min. 7mm
Diameter (D) 9.9mm
Length (L) 100.0m
Nominal ∅ 10mm
Nominal ∅ 0.38"
∅ D 0.39"
Abrasion Resistance High
CSA Certified No
ELV compliant (Article 4 - 2) YES
EN 45545-2 Results R22 HL3, R23 HL3
Flammability UL 94 V2, FMVSS 302
Halogenfree Yes
Hazardous good No
Material Polyamide 6.6 (PA66)
Melting Point +255 °C
Operating Temperature - °C -60 °C to +150 °C
Specifications
Specifications DIN EN 45545-2 (02/2016), ECE R-118-03 Abschnitt 6 / Annex 6 (PB-58022-0019-02), ECE R-118-03 Abschnitt 8 / Annex 8 (PB60-18-0688, PB60-18-0689)
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
GTIN-13 / EAN 4031026125978
Packaging 1 - Height (m) 0.07m
Packaging 1 - Length (m) 0.37m
Packaging 1 - Qty 100
Packaging 1 - Type reel
Packaging 1 - Volume (m³) 0.00958
Packaging 1 - Weight (kg) 1.43kg
Packaging 1 - Width (m) 0.37m
Packaging 3 - Height (m) 0.395m
Packaging 3 - Length (m) 0.38m
Packaging 3 - Qty 500
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0563
Packaging 3 - Weight (kg) 7.65kg
Packaging 3 - Width (m) 0.375m
Packaging 4 - Height (m) 1.329m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 9000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.276
Packaging 4 - Weight (kg) 158.7kg
Packaging 4 - Width (m) 0.8m
Reel Length 100.0m
Reel Length 328.0ft
ETIM 6.0 EC001182
ETIM 7.0 Key EC001182
UNSPSC Key 39131602
