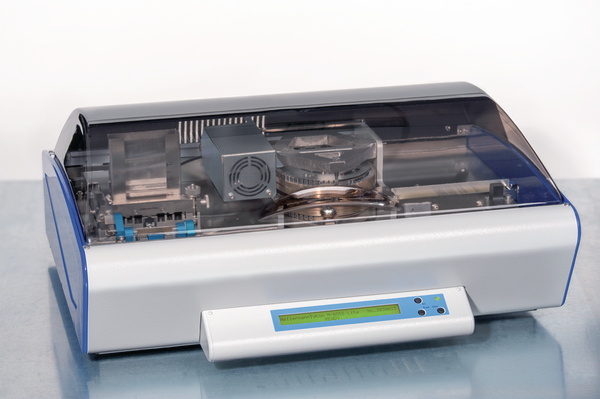

Stainless Steel Printing System M-BOSS Lite

M-BOSS Lite Printer, Article number: 544-00000

Features

  • Marine grade stainless steel marker plate embossing printer for low to medium volumes
  • Used to identify pipes and cables
  • Used in offshore platforms, floating production storage offloading (FPSO), refineries, rail infrastructure, utilities, food, and solar farms
  • Small enough to install in most premises
  • Uses a standard electrical supply and only weighs 35kg
  • MBML10X45 printed with 8 characters in under 10 seconds
  • MBML20X90 printed with 69 characters in less than a minute
  • Use 4.6mm wide cable ties and hand tool to securely fix marker plate to cable
  • Rivets can be applied to MBML20X90 and MBML20X45 if required
  • Comes with 42-piece 4mm character set
  • Letters: A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
  • Numbers: 0 1 2 3 4 5 6 7 8 9
  • Symbols: & - / . ,'

Certifications & Approvals

Application

M-BOSS Lite is the ideal stainless steel marker plate embossing printer for low to medium volumes.
Installation is quick and it is very easy to operate. Due to it being small in size, quiet in operation, and able to run off a normal electrical supply, it is very easy to locate within your business.
All sizes will be printed in under a minute.

M-BOSS Lite Printer is suitable for following markets and industries

  • Electronics Industry Electronics Industry
Application 2
Colour Silver (SR)

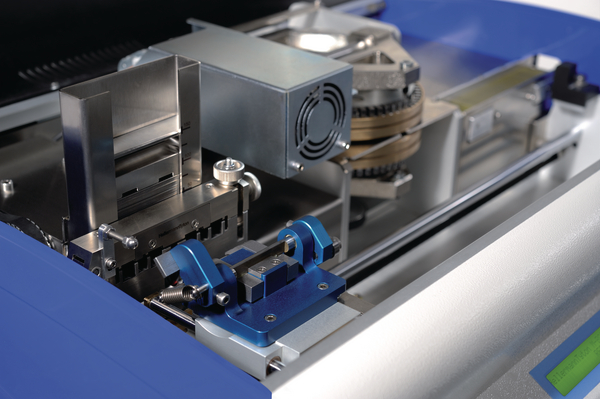

Features and Benefits The simple solution to your small volume embossing needs is done in 4 steps; (1) feeding, (2) embossing, (3) marker ejection, and finally marker collection. The markers are easily removed from the collection tray to the right of the machine and can then be used to fix with stainless steel cable ties. The 3 production steps are easily seen from the picture on the right and these are;
GLOBAL PART DESCRIPTION M-BOSS Lite-ML
Pack Cont. 1
Package Quantity per box
Product Family M-BOSS Lite Printer
Product Group Stainless Steel Printing System
System Requirements Microsoft Windows operating system
Cycle Time Just under 1 second per character
Height (H) 260mm
L x H x W 650 mm x 260 mm x 500mm
Length (L) 650mm
Power Supply 230 Volt 50/60 Hz
Print Method Embossing
Strap Width max. (G) 4.6mm
Width (W) 500mm
ELV compliant (Article 4 - 2) YES
Hazardous good No
Interfaces USB 2.0
Specifications
Specifications CEN
Dimensions W x H x D 500 mm x 260 mm x
EAN / GTIN 5022660673511
Packaging 1 - Height (m) 0.35m
Packaging 1 - Length (m) 0.86m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.2107
Packaging 1 - Weight (kg) 37.5kg
Packaging 1 - Width (m) 0.7m
Weight 37.5kg
Weight 77.16lbs
ETIM 5.0 EC001672
ETIM 6.0 EC001672
