Bottle Shapes, MIL style
Art.-No. 410-09001 | 1009-1-G-PO-X-BK

Copied
100 series supplied / fully recovered.

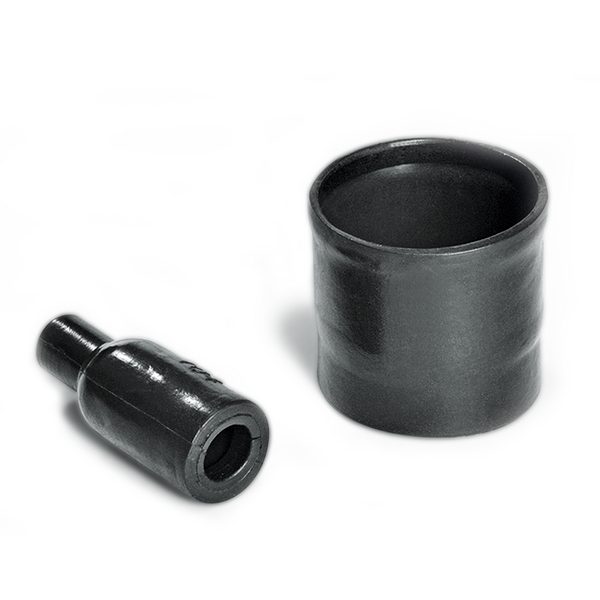

a: Expanded form (supplied)
b: Fully recovered form (after heating)

    • With circular grooved adaptor for strain relief
    • Combine with complementary adhesives for environmental sealing
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Brand Family HELASHRINK
    Color Black (BK)
    Description Helashrink 100 series, with rib, is used in conjunction with a circular grooved adaptor providing strain relief and environmental sealing when used in conjunction with one of HellermannTyton's complementary adhesives.
    PART DESCRIPTION 1009-1-G-PO-X-BK
    Packaging Type bag
    Part No. 410-09001
    Product family Insulation
    Short Desc. Heat Shrink Molded Shapes, 100 Series Bottle with Rib - MIL, 1009-1-G, PO-X, BK, 1/bag
    Type 1009-1-G
    UV Resistant No
    ⌀H max. b 5.6mm
    ⌀H min. a 9mm
    ⌀J max. b 3.2mm
    ⌀J min. a 8.0mm
    Flexibility Semi rigid
    For Object Outside Diameter 6.28-8.32 mm
    HW ± 20 % 1mm
    HW ± 20% .04"
    JW ± 20 % 0.5mm
    JW ± 20% .02"
    Max. Bundle Diameter (imperial) 0"
    Max. Diameter J b .13"
    Max. Recovered Diameter b .22"
    Min. Bundle Diameter (imperial) 0"
    Min. Diameter J a 0.31"
    Min. Supplied Diameter a .35"
    Nominal Length S 7.5mm
    Nominal S .29"
    P ± 10 % 27mm
    P ± 10% 1.05"
    T ± 20% .04"
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Material PO-X
    Material Polyolefin, cross-linked (PO-X)
    Min. Shrink Temperature +275 °F (+135 °C)
    Operating Temperature -103°F to +302°F (-75°C to +150°C)
    ROHS compliant Yes
    Pkg. Qty. 1
    Pkg. Qty. 1EA
