19/04/2024

Helashrink 100 Series
Art.-No. 410-35002 | 1035-42-H-PO-X-BK |  Details

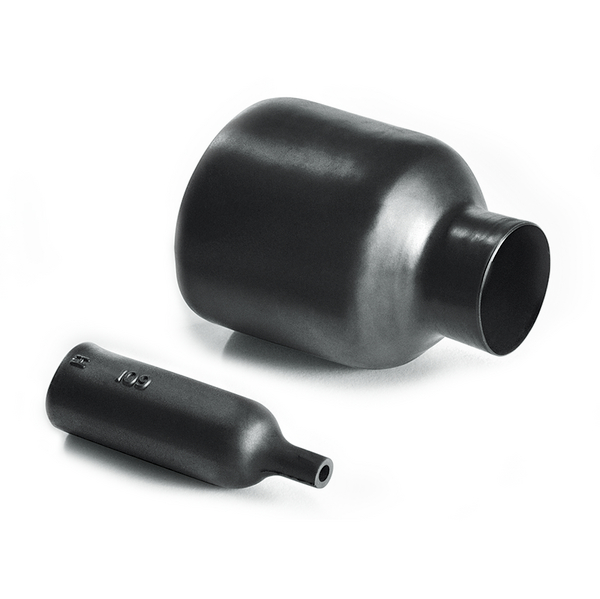

100 series supplied / fully recovered.

    • Strain relief for connector cable
    • Easy re-entry for repair when combined with hot melt adhesive
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Application Tool H6100, CHG900
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    Pack Cont. 1pc.
    Package Content packed in bag
    PART DESCRIPTION 1035-42-H-PO-X-BK
    Product Family Helashrink 100 Series
    Product Group Bottle Shapes
    Flexibility Flexible
    HW ± 20 % 2.8mm
    JW ± 20 % 1.4mm
    P ± 10 % 95mm
    R max. 50mm
    S nom. 30mm
    T ± 20 % 1mm
    ∅H max. b 23mm
    ∅H min. a 32mm
    ∅J max. b 8.5mm
    ∅J min. a 24mm
    Dielectric Strength 15kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Halogen-free Yes
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -55 °C to +105 °C
    Specifications
    Tensile Strength 10MPa
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660403323
    Packaging 1 - Height (m) 0.050m
    Packaging 1 - Length (m) 0.210m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00137m³
    Packaging 1 - Weight (kg) 0.022kg
    Packaging 1 - Width (m) 0.130m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
