Bottle Shapes 109-1-J

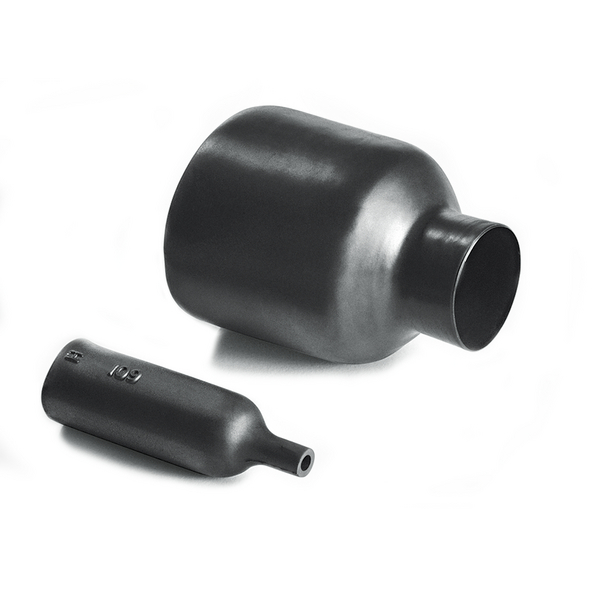

Helashrink 100 Series, without rib, Article number: 401-09004

100 series supplied / fully recovered.

Features

  • Strain relief for connector cable
  • Easy re-entry for repair when combined with hot melt adhesive
  • For mechanical protection and protection against environment impacts

Certifications & Approvals

Application

Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications

Colour Black (BK)
GLOBAL PART DESCRIPTION 109-1-J-PO-X-BK
Pack Cont. 1pc.
Package Quantity per bag
Product Family Helashrink 100 Series, without rib
Product Group Bottle Shapes
Variant Thick-Wall
Flexibility Flexible
HW ± 20 % 2mm
JW ± 30 % 1.3mm
P ± 10 % 53.3mm
R max. 35.6mm
S nom. 7.6mm
∅H max. b 14.2mm
∅H min. a 19.3mm
∅J max. b 4.1mm
∅J min. a 8.1mm
Dielectric Strength 18 kV/mm according to ASTM D2671
Flammability ASTM D635
Material Polyolefin, cross-linked (PO-X)
Min. Shrink Temperature - °C +135 °C
Operating Temperature - °C -55 °C to +135 °C
Specifications
Tensile Strength 19MPa
EAN / GTIN 5022660406515
ETIM 5.0 EC002464
ETIM 6.0 EC002464
