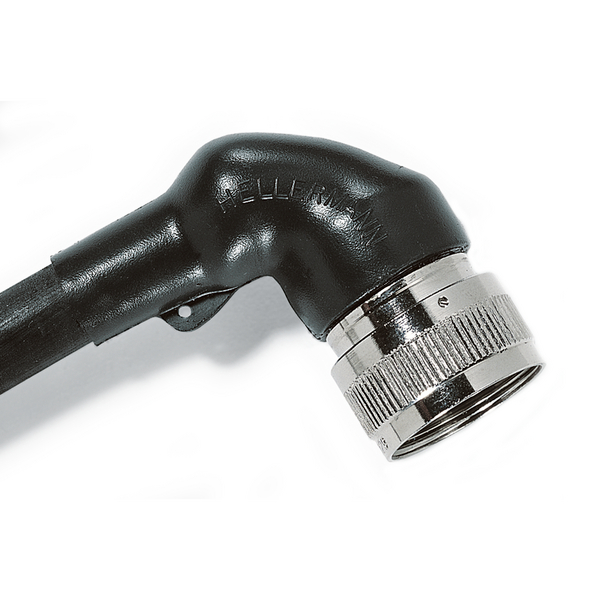

Right-Angle Shape VG-Style with Rib for Plugs black, PO-X
Art.-No. 411-56001 | 1156-4-B7-PO-X-BK Details

  • Used in conjunction with a circular grooved adaptor
  • Provides strain relief and an environmental seal
Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, CHG900
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
Pack Cont. 1pc.
Package Content packed in bag
PART DESCRIPTION 1156-4-B7-PO-X-BK
Product Family Helashrink 1100 Series, with rib
Product Group Right-Angle Shapes, VG style
Short Description Right-Angle Shape VG-Style with Rib for Plugs black, PO-X
Variant For plug
Angle 90°
Flexibility semi rigid
HW ± 20 % 1.8mm
JW ± 20 % 1mm
JW ± 30 % 1mm
M nom. 26mm
P ± 10 % 46mm
R ± 10 % 38mm
S nom. 15mm
T ± 20 % 1mm
V max. 3.3mm
W ± 10 % 3.0mm
Weight/Unit 0.01kg
∅H max. b 22.5mm
∅H min. a 36mm
∅J max. b 8.5mm
∅J min. a 36mm
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
ELV compliant (Article 4 - 2) YES
Flammability ASTM D635
Hazardous Goods No
Min. Shrink Temperature - °C +135 °C
Nato number 5970-01-032-3556, 5970-99-778-4391, 5970-99-718-6665
Operating Temperature -55 °C to +135 °C
Shelf Life 5 years
Specifications
Specifications DAN341
Tensile Strength 13MPa
UV-Stabilised No
Country of Origin GB
Customs Number 39174000
GTIN-13 / EAN 5022660416019
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.13m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00052
Packaging 1 - Weight (kg) 0.010001kg
Packaging 1 - Width (m) 0.1m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
