Right-Angle Shapes, VG style
Art.-No. 411-56054 | 1156-52-L-FPMX-BK

Copied
1155-4 supplied.
b: Fully recovered form (after heating)
a: Expanded form (supplied)

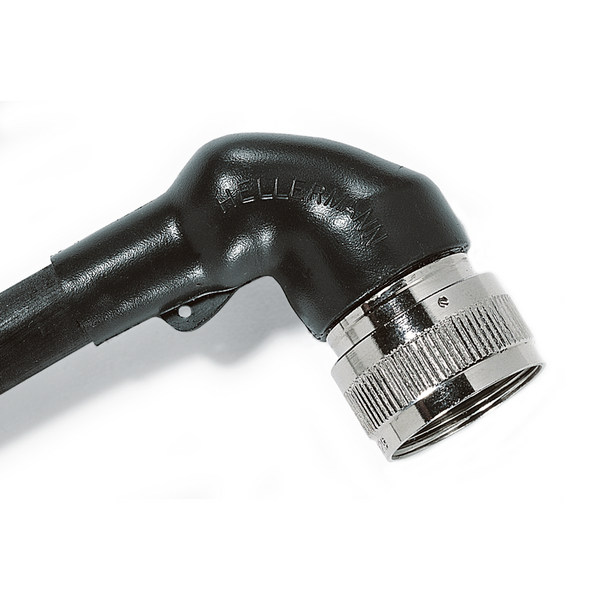

Space saving right-angle shapes used here in a military application.

    • Used in conjunction with a circular grooved adaptor
    • Provodes strain relief and an environmental seal
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Brand Family HELASHRINK
    Color Black (BK)
    Description Helashrink 1100 series, with rib - VG style, provides strain relief for harness systems when used in conjunction with a circular grooved adaptor. For VG shapes according to T06 with portholes add "P" after the part number.
    PART DESCRIPTION 1156-52-L-FPMX-BK
    Packaging Type bag
    Part No. 411-56054
    Product family Insulation
    Short Desc. Heat Shrink Molded Shapes, 1100 Series 90-Degree with Rib - VG, 1156-52-L, FPMX, BK, 1/bag
    Type 1156-52-L
    UV Resistant No
    ⌀H max. b 22.5mm
    ⌀H min. a 34mm
    ⌀J max. b 8.5mm
    ⌀J min. a 17mm
    Angle 90
    Flexibility Flexible
    For Object Outside Diameter 24.8-31.7 mm
    HW ± 20 % 1.8mm
    HW ± 20% .07"
    Max. Bundle Diameter (imperial) 0"
    Max. Diameter J b .33"
    Max. Recovered Diameter b .88"
    Min. Bundle Diameter (imperial) 0"
    Min. Diameter J a .66"
    Min. Supplied Diameter a 1.33"
    Nominal Length S 15mm
    Nominal S .59"
    T ± 20% .04"
    Dielectric Strength 9kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Material FPMX
    Material Fluoropolymer, cross-linked (FPMX)
    Min. Shrink Temperature +275 °F (+135 °C)
    Operating Temperature -67°F to +392°F (-55°C to +200°C)
    ROHS compliant Yes
    Packaging 1 - Weight (kg) 0.014001kg
    Pkg. Qty. 1
    Pkg. Qty. 1EA

    Heat shrink end caps
