28/03/2024

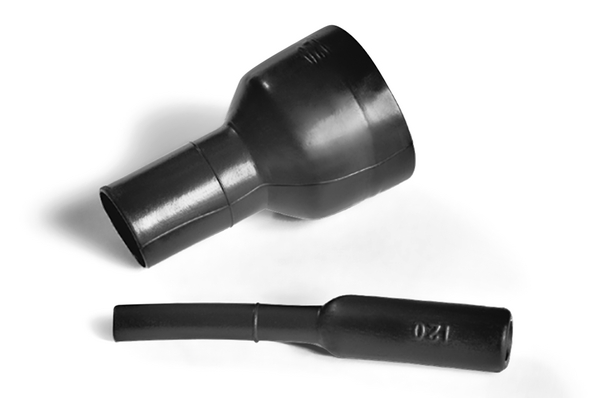

Helashrink 120 Series, without rib
Art.-No. 401-20007 | 120-1-JWM250-PO-X-BK Details

  • Long tail providing extended strain relief for small diameter wires
  • Can be supplied with or without rib
  • Can be supplied in various material / adhesive combinations
Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, CHG900
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
Pack Cont. 1pc.
Package Content packed in bag
PART DESCRIPTION 120-1-JWM250-PO-X-BK
Product Family Helashrink 120 Series, without rib
Product Group Bottle Shapes
Flexibility Flexible

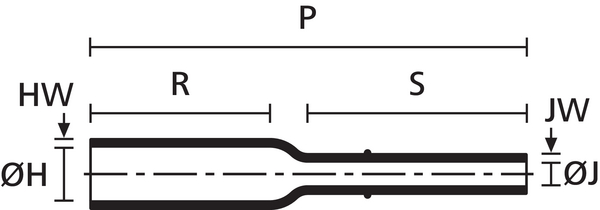

HW ± 20 % 1.3mm
P ± 10 % 60.9mm
R nom. 24mm
R ± 10 % 24mm
S nom. 32mm
W ± 20 % 1.3mm
Weight/Unit 0.002kg

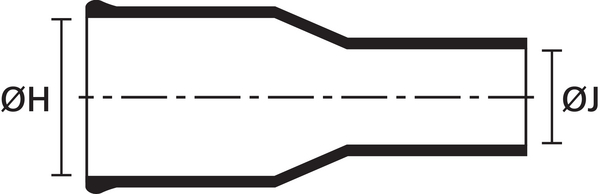

∅H max. b 7mm
∅H min. a 16.5mm
∅J max. b 3mm
∅J min. a 10.2mm
Adhesive WM250
Dielectric Strength 18kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Min. Shrink Temperature - °C +135 °C
Operating Temperature -55 °C to +135 °C
Shelf Life 5 years
Specifications
Country of Origin GB
GTIN-13 / EAN 5022660418297
Packaging 1 - Height (m) 0.020m
Packaging 1 - Length (m) 0.130m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00026
Packaging 1 - Weight (kg) 0.002001kg
Packaging 1 - Width (m) 0.100m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
