28/03/2024

Helashrink 1200 Series
Art.-No. 412-07020 | 1207-50-L-FPMX-BK Details

  • Strain relief, sealing and mechanical protection on cable harnesses

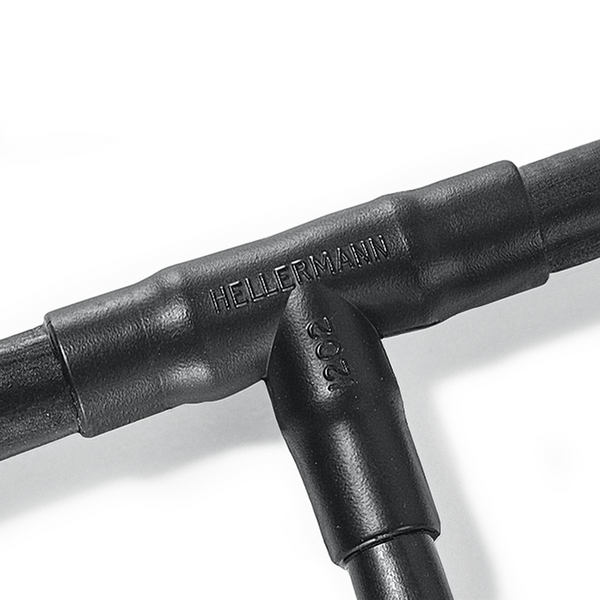

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, CHG900
Colour Black (BK)
Material Fluoroelastomer, cross-linked (FPMX)
Pack Cont. 1pc.
Package Content packed in bag
PART DESCRIPTION 1207-50-L-FPMX-BK
Product Family Helashrink 1200 Series
Product Group T-Shapes, VG style/MIL style
Variant For 2-core cables
HW ± 30 % 2.5mm
JW ± 30 % 2.5mm
KW ± 20 % 2.5mm
P ± 10 % 120mm
R ± 10 % 60mm
Weight/Unit 0.036kg
∅H max. b 13.5mm
∅H min. a 25mm
∅J max. b 13.5mm
∅J min. a 25mm
∅K max. b 13.5mm
∅K min. a 25mm
Nato number 5970-01-136-7987
Specifications
UV-Stabilised (Yes/No) No
Country of Origin GB
GTIN-13 / EAN 5022660419973
Packaging 1 - Height (m) 0.004m
Packaging 1 - Length (m) 0.020m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0
Packaging 1 - Weight (kg) 0.03601kg
Packaging 1 - Width (m) 0.013m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
