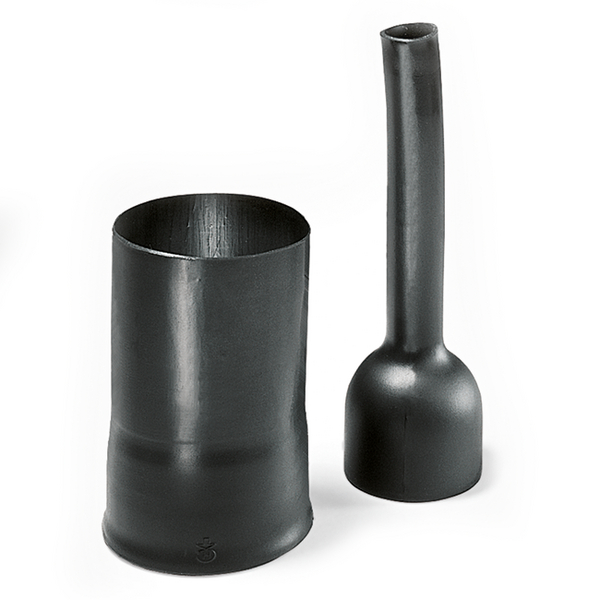

Long Outlet Shape, VG style
Art.-No. 401-30007
| 130-1-J-PO-X-BK
Copied
- Low profile and lightweight
- Typically used on airborne harnesses
- Rib locates on circular backshell
More products in this product group:
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 130 Series, with rib - VG style, is a low profile and lightweight which is typically used on airborne harnesses. The rib is located on the circular backshell. |
| PART DESCRIPTION | 130-1-J-PO-X-BK |
| Packaging Type | bag |
| Part No. | 401-30007 |
| Product family | Insulation |
| Short Desc. | Heat Shrink Molded Shapes, 130 Series Long Outlet with Rib, 130-1-J, PO-X, BK, 1/bag |
| Type | 130-1-J |
| UV Resistant | No |
|
|
|
| ⌀H max. b | 15mm |
| ⌀H min. a | 25.2mm |
| ⌀J max. b | 7.5mm |
| ⌀J min. a | 25.5mm |
| For Object Outside Diameter | 17.04-23.16 mm |
| HW ± 20 % | 1.5mm |
| HW ± 20% | .06" |
| Max. Bundle Diameter (imperial) | 0" |
| Max. Diameter J b | .30" |
| Max. Recovered Diameter b | .59" |
| Min. Bundle Diameter (imperial) | 0" |
| Min. Diameter J a | 1.00" |
| Min. Supplied Diameter a | 1.0" |
| Nominal Length S | 60mm |
| Nominal S | 2.36" |
| P ± 10 % | 83mm |
| P ± 10% | 3.27" |
| T ± 20% | .04" |
