Long Outlet Shape, VG style
Art.-No. 401-36006 | 136-4-G-PO-X-BK

Copied

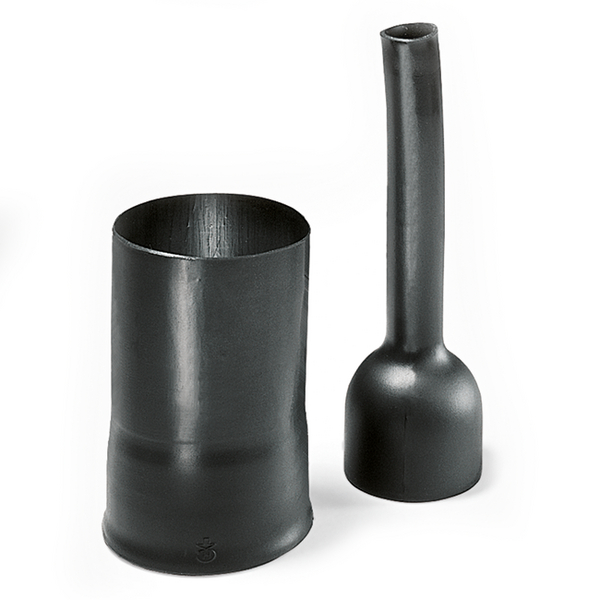

135-1 supplied / fully recovered.
a: Expanded form (supplied)
b: Fully recovered form (after heating)

    • Low profile and lightweight
    • Typically used on airborne harnesses
    • Rib locates on circular backshell
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Brand Family HELASHRINK
    Color Black (BK)
    Description Helashrink 130 Series, with rib - VG style, is a low profile and lightweight which is typically used on airborne harnesses. The rib is located on the circular backshell.
    PART DESCRIPTION 136-4-G-PO-X-BK
    Packaging Type bag
    Part No. 401-36006
    Product family Insulation
    Short Desc. Heat Shrink Molded Shapes, 130 Series Long Outlet with Rib,136-4-G, PO-X, BK, 1/bag
    Type 136-4-G
    UV Resistant No
    ⌀H max. b 47mm
    ⌀H min. a 62.7mm
    ⌀J max. b 17.5mm
    ⌀J min. a 62.7mm
    Flexibility Semi rigid
    For Object Outside Diameter 50.14-59.56 mm
    HW ± 20 % 2.5mm
    HW ± 20% .1"
    JW ± 20 % 1.4mm
    JW ± 20% .05"
    Max. Bundle Diameter (imperial) 0"
    Max. Diameter J b .68"
    Max. Recovered Diameter b 1.83"
    Min. Bundle Diameter (imperial) 0"
    Min. Diameter J a 2.45"
    Min. Supplied Diameter a 2.45"
    Nominal Length S 153.2mm
    Nominal S 5.97"
    P ± 10 % 203.2mm
    P ± 10% 7.92"
    T ± 20% .08"
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Material PO-X
    Material Polyolefin, cross-linked (PO-X)
    Min. Shrink Temperature +275 °F (+135 °C)
    Operating Temperature -103°F to +302°F (-75°C to +150°C)
    ROHS compliant Yes
    Packaging 1 - Weight (kg) 0.050001kg
    Pkg. Qty. 1
    Pkg. Qty. 1EA
