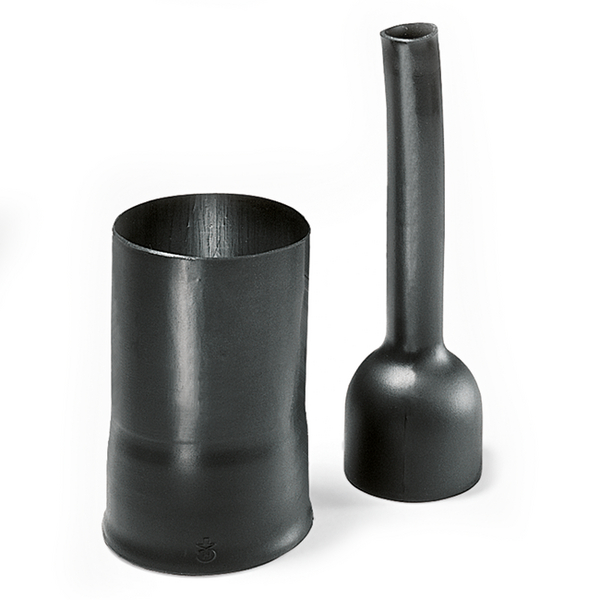

Long Outlet Shapes
Art.-No. 401-49006
| 149-1-J-PO-X-BK
Copied
- Low profile and light weight.
- Suited for aerospace harness assemblies.
- Extended tail provides excellent strain relief and flexibility.
More products in this product group:
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 140 series, without rib, is low profile and light weight, ideally suited to aerospace harness assemblies, the extended tail provides excellent strain relief and flexibility. |
| PART DESCRIPTION | 149-1-J-PO-X-BK |
| Packaging Type | bag |
| Part No. | 401-49006 |
| Product family | Insulation |
| Short Desc. | Heat Shrink Molded Shapes, 140 Series Long Outlet, 149-1-J, PO-X, BK, 1/bag |
| Type | 149-1-J |
| UV Resistant | No |
| ⌀H max. b | 21.8mm |
| ⌀H min. a | 41.2mm |
| ⌀J max. b | 10.2mm |
| ⌀J min. a | 41.2mm |
| Flexibility | Flexible |
| For Object Outside Diameter | 25.68-37.32 mm |
| HW ± 20 % | 2.3mm |
| HW ± 20% | .09" |
| Max. Bundle Diameter (imperial) | 0" |
| Max. Diameter J b | .4" |
| Max. Recovered Diameter b | .85" |
| Min. Bundle Diameter (imperial) | 0" |
| Min. Diameter J a | 1.61" |
| Min. Supplied Diameter a | 1.61" |
| Nominal Length S | 127.0mm |
| Nominal S | 4.95" |
| P ± 10 % | 162.1mm |
| P ± 10% | 6.32" |
