Helashrink 1500 Series, with top entry
Art.-No. 415-06011 | 1506-1-J-PO-X-BK |  Details

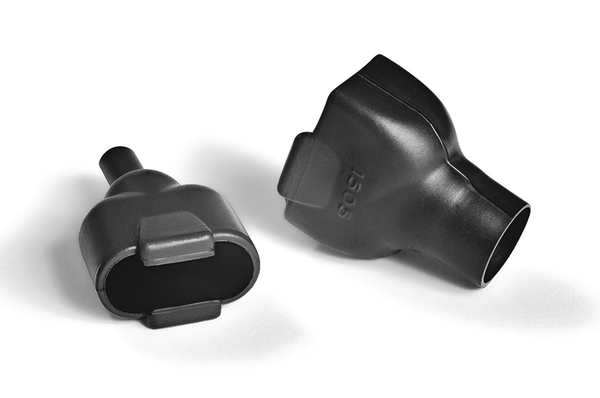

1505-1 supplied / fully recovered.

    • Provides strain relief and mechanical protection for Min-D series connectors
    • Unique design allows perfect orientation on installation
    • Can be supplied with or without lips
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Application Tool H6100, CHG900
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    Pack Cont. 1pc.
    Package Content packed in bag
    PART DESCRIPTION 1506-1-J-PO-X-BK
    Product Family Helashrink 1500 Series, with top entry
    Product Group Connector Cover for Min-D Series
    Flexibility Flexible

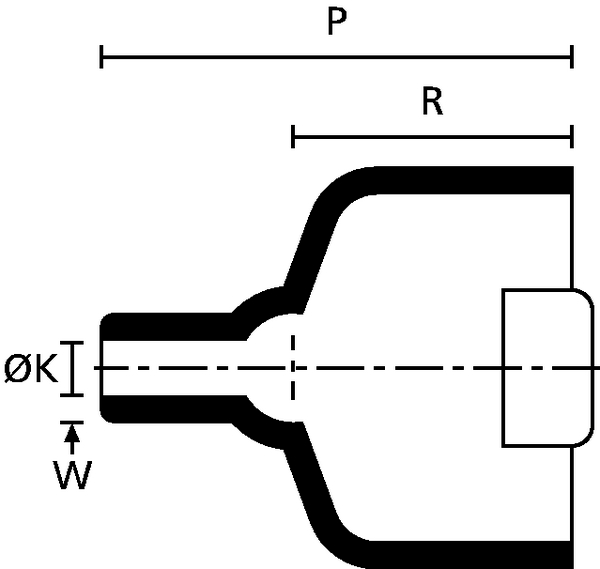

    P ± 10 % 38.9mm
    R ± 10 % 22.1mm
    W ± 20 % 1mm
    Weight/Unit 0.004kg

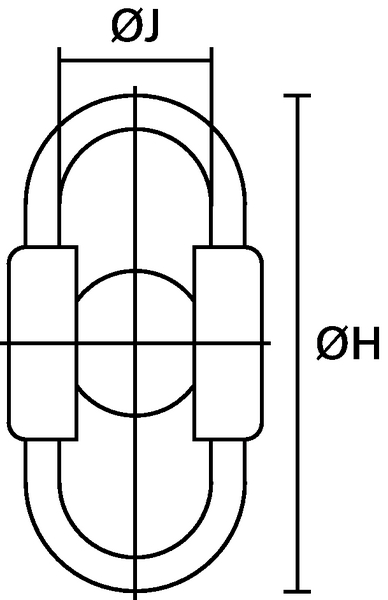

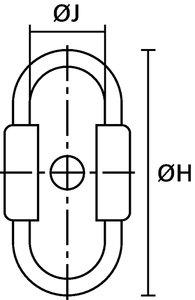

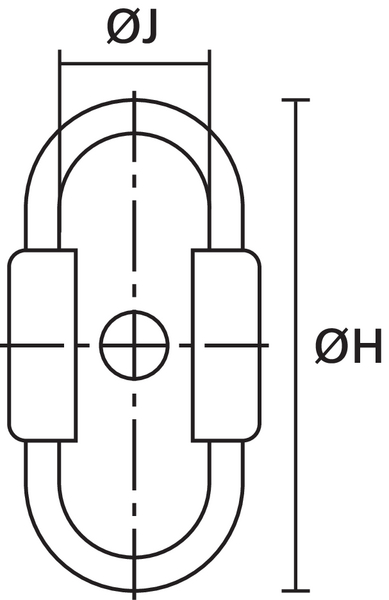

    ∅H max. b 28.2mm
    ∅H min. a 28.1mm
    ∅J max. b 10.7mm
    ∅J min. a 10.7mm

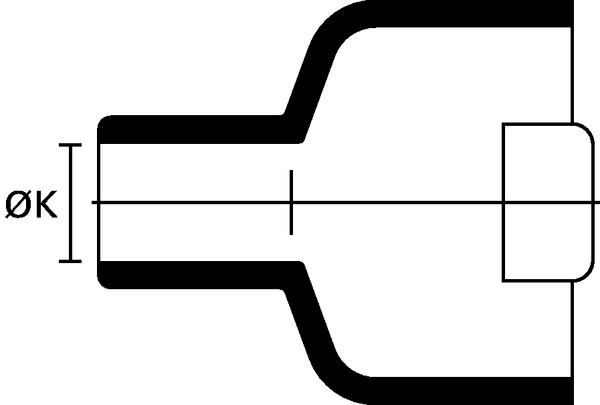

    ∅K max. b 5.3mm
    ∅K min. a 10.1mm
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -55 °C to +135 °C
    Shelf Life 5 years
    Specifications
    Tensile Strength 19MPa
    Country of Origin GB
    GTIN-13 / EAN 5022660429613
    Packaging 1 - Height (m) 0.020m
    Packaging 1 - Length (m) 0.160m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00032m³
    Packaging 1 - Weight (kg) 0.004001kg
    Packaging 1 - Width (m) 0.100m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
