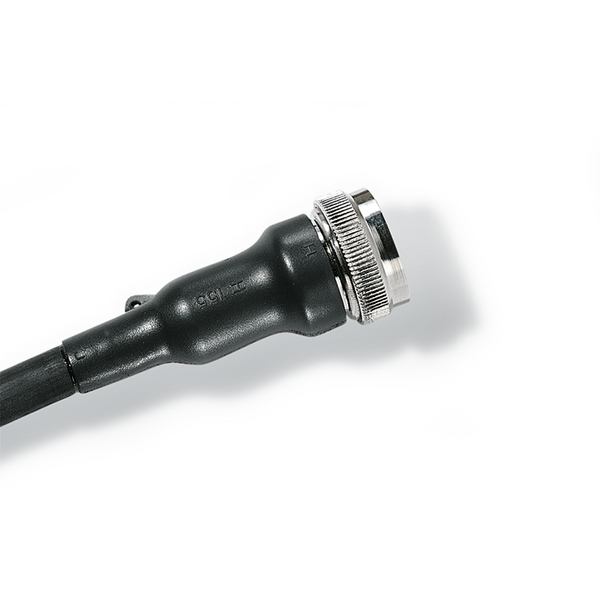

Helashrink 150 Series, with rib
Art.-No. 401-53008 | 153-42-B7-PO-X-BK Details

  • Use in conjunction with circular grooved adaptors
  • Strengthened strain relief by usage of an additional inner lip
  • Excellent protection against environment impacts
  • Eliminates moisture ingress to harness
Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, CHG900
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
Pack Cont. 1pc.
Package Content packed in bag
PART DESCRIPTION 153-42-B7-PO-X-BK
Product Family Helashrink 150 Series, with rib
Product Group Bottle Shapes, VG style
Variant For plug
HW ± 20 % 1.8mm
JO ± 10 % 16mm
JW ± 30 % 1.0mm
P ± 10 % 55mm
R nom. 28mm
R ± 10 % 28mm
S nom. 16mm
T ± 20 % 1mm
V ± 10 % 3.0mm
V ± 20% 3mm
Weight/Unit 0.005kg
∅H max. b 14mm
∅H min. a 25mm
∅J max. b 3.5mm
∅J min. a 9mm
Dielectric Strength 14kV/mm
Min. Shrink Temperature - °C +135 °C
Nato number 5935-99-734-3307
Operating Temperature -55 °C to +135 °C
Specifications
UV-Stabilised (Yes/No) No
Country of Origin GB
GTIN-13 / EAN 4031026300276
Packaging 1 - Height (m) 0.030m
Packaging 1 - Length (m) 0.130m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00039
Packaging 1 - Weight (kg) 0.0060kg
Packaging 1 - Width (m) 0.100m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
