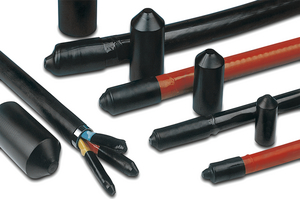

End Caps 1612-1-B5W2

Helashrink 1600 Series, low voltage, Article number: 416-12046

Features

  • Seal cables during storage or transportation
  • Insulating cap for live LV cables (0.6/1kV)
  • Adhesive lining for excellent environmental seal
  • High shrink ratio to minimise number of sizes needed
  • Can be fitted with air valves for pressurised cable applications
  • High shrink ratio to minimise number of sizes needed

Certifications & Approvals

Application

End caps are suitable for use on polymeric and paper insulated or lead jacketed cables which may include aluminium or steel armouring.

Helashrink 1600 Series, low voltage is suitable for following markets and industries

Application Tool H5002, H5004, E4500
Colour Black (BK)
Pack Cont. 1000pcs.
Package Quantity per carton
PART DESCRIPTION 1612-1-B5W2-PO-X-BK
Product Family Helashrink 1600 Series, low voltage
Product Group End Caps
Short Description End Cap with Thermoplastic Adhesive for Low Voltage black, PO-X, up to 3:1
Shrink Ratio up to 3:1
Size 1/2"
Bundle ∅ max. 8.0mm
Bundle ∅ min. 4.0mm
Flexibility semi rigid

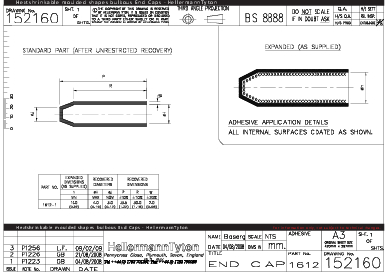

HW ± 20 % 2.6mm
Max Voltage 600V
P ± 10 % 40.0mm
Recov. ∅ d max. 4.0mm
Supplied ∅ D min. 12.0mm
W ± 10 % 2.0mm
W ± 20 % 2.6mm
∅H max. b 4.0mm
∅H min. a 12.0mm
Adhesive W2
Dielectric Strength 15 kV/mm
ELV compliant (Article 4 - 2) YES
Flammability ASTM D635
Hazardous good No
Material Polyolefin, cross-linked (PO-X)
Min. Shrink Temperature - °C +135 °C
Operating Temperature - °C -55 °C to +80 °C
Specifications
EAN / GTIN 5022660646164
Packaging 1 - Height (m) 0.014m
Packaging 1 - Length (m) 0.0335m
Packaging 1 - Qty 1
Packaging 1 - Type pcs.
Packaging 1 - Volume (m³) 0.00001
Packaging 1 - Weight (kg) 0.0016kg
Packaging 1 - Width (m) 0.014m
Packaging 2 - Height (m) 0.1m
Packaging 2 - Length (m) 0.23m
Packaging 2 - Qty 1000
Packaging 2 - Type bag
Packaging 2 - Volume (m³) 0.0081
Packaging 2 - Weight (kg) 1.6kg
Packaging 2 - Width (m) 0.35m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 3000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0648
Packaging 3 - Weight (kg) 8.1kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.166m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.119
Packaging 4 - Weight (kg) 150.6kg
Packaging 4 - Width (m) 0.8m
Weight 0.0016kg
ETIM 6.0 EC000218
ETIM 7.0 Key EC000218
