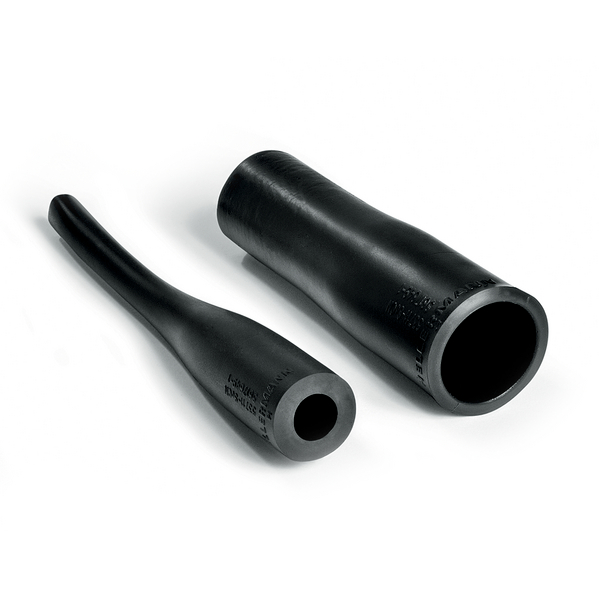

GSR Graduated Strain Relief
Art.-No. 417-51001 | 1751-1-H-PO-X-BK

More products in this product group:

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Brand Family	HELASHRINK
Color	Black (BK)
Description	Heatshrink 1750 series, with rib, is ideally suited for shipboard and railway carriage cabling. The wall thickness varies with long tail, allowing setting at varying angles through 90°.
PART DESCRIPTION	1751-1-H-PO-X-BK
Packaging Type	bag
Part No.	417-51001
Product family	Insulation
Short Desc.	Heat Shrink Molded Shapes, 1750 Series - Strain Relief, 1751-1-H, PO-X, BK, 1/bag
Type	1751-1-H
UV Resistant	No

⌀H max. b	16.5mm
⌀H min. a	25.4mm
⌀J max. b	8.3mm
⌀J min. a	25.4mm
Flexibility	Semi rigid
For Object Outside Diameter	18.28-23.62 mm
HW ± 20 %	4.1mm
HW ± 20%	.16"
JW ± 20 %	1.5mm
JW ± 20%	.06"
Max. Bundle Diameter (imperial)	0"
Max. Diameter J b	.32"
Max. Recovered Diameter b	.64"
Min. Bundle Diameter (imperial)	0"
Min. Diameter J a	.99"
Min. Supplied Diameter a	.99"
P ± 10 %	152.4mm
P ± 10%	5.94"
