Angle Shapes


Art.-No. 418-30001

| 1830-1-L-FPMX-BK

 |

Copied
1694889

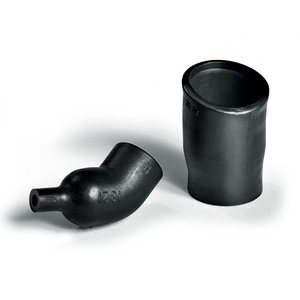

a: Expanded form (supplied)
b: Fully recovered form (after heating)
1821-42 supplied / fully recovered.

    • Provides strain relief and mechanical protection for harness systems
    • Use in conjunction with a circular grooved adaptor
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Fluoropolymer, cross-linked (FPMX)
    PART DESCRIPTION 1830-1-L-FPMX-BK
    Package Content 1pc.
    Package Content packed in bag
    Product Family Helashrink 1800 Series, with rib, 30°, 45°, 60° angle
    Product Group Angle Shapes
    Type 1830-1-L
    UV-Stabilised No
    ⌀H max. b 17.9mm
    ⌀H min. a 31.0mm
    ⌀J max. b 7.0mm
    ⌀J min. a 18mm
    Angle 45
    Flexibility semi rigid
    For Object Outside Diameter 20.52-28.38 mm
    HW ± 20 % 1.8mm
    P ± 10 % 55mm
    R nom. 35mm
    T ± 20 % 2.0mm
    Tube Shape Angle
    V max. 3.5mm
    Min. Shrink Temperature - °C +135 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660690167
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
