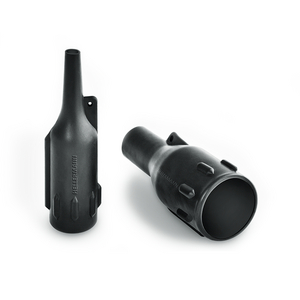

Bottle Shapes, VG style
Art.-No. 401-99003 | 199-4-G-PO-X-BK

More products in this product group:

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Brand Family	HELASHRINK
Color	Black (BK)
Description	Helashrink 190 series, with external ribs, was developed specifically for small audio connectors with multiple external ribs to improve grip in harsh conditions.
PART DESCRIPTION	199-4-G-PO-X-BK
Packaging Type	bag
Part No.	401-99003
Product family	Insulation
Short Desc.	Heat Shrink Molded Shapes, 190 Series Bottle with External Ribs, 199-4-G, PO-X, BK, 1/bag
Type	199-4-G
UV Resistant	No


⌀H max. b	14mm
⌀H min. a	17.5mm
⌀J max. b	4.3mm
⌀J min. a	7mm
For Object Outside Diameter	14.7-16.8 mm
HW ± 20 %	1.8mm
HW ± 20%	.07"
JW ± 20 %	0.5mm
JW ± 20%	.02"
Max. Bundle Diameter (imperial)	0"
Max. Diameter J b	.17"
Max. Recovered Diameter b	.55"
Min. Bundle Diameter (imperial)	0"
Min. Diameter J a	.27"
Min. Supplied Diameter a	.68"
Nominal Length S	20mm
Nominal S	.78"
P ± 10 %	70mm
P ± 10%	2.73"
T ± 20%	.04"

Pkg. Qty.	1
Pkg. Qty.	1EA
