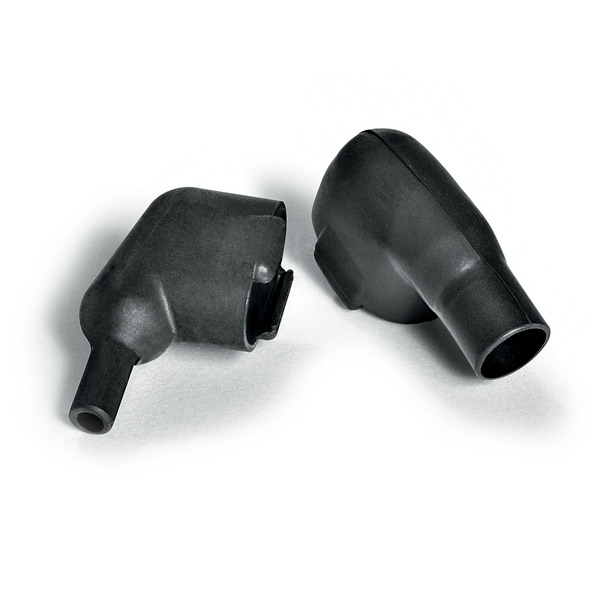

Connector Cover for Min-D Series
Art.-No. 421-04005 | 2104-1-G-PO-X-BK

Copied
2101-1 supplied / fully recovered.
b: Fully recovered form (after heating)
Fully recovered form (after heating)
b: Fully recovered form (after heating)
a: Expanded form (supplied)
a: Expanded form (supplied)

    • Provides strain relief and mechanical protection for Min-D series connectors
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Brand Family HELASHRINK
    Color Black (BK)
    Description Helashrink 2100 series, with 90° entry, features a unique design that allows perfect 90° orientation on installation. It can be supplied with or without lips in a range of material and adhesive combinations to suit most applications.
    PART DESCRIPTION 2104-1-G-PO-X-BK
    Packaging Type bag
    Part No. 421-04005
    Product family Insulation
    Short Desc. Heat Shrink Molded Shapes, 2100 Series D-Boot 90-Degree, 2104-1-G, PO-X, BK, 1/bag
    Type 2104-1-G
    UV Resistant No
    ⌀H max. b 58.7mm
    ⌀H min. a 58.6mm
    ⌀J max. b 10.7mm
    ⌀J min. a 10.6mm
    ⌀K max. b 8.6mm
    ⌀K min. a 17.2mm
    Angle 90
    Flexibility Semi rigid
    For Object Outside Diameter 58.68-58.62 mm
    Max. Bundle Diameter (imperial) 0"
    Max. Diameter J b .42"
    Max. Diameter K b .34"
    Max. Recovered Diameter b 2.29"
    Min. Bundle Diameter (imperial) 0"
    Min. Diameter J a .41"
    Min. Diameter K a .67"
    Min. Supplied Diameter a 2.29"
    P ± 10 % 53.3mm
    P ± 10% 2.08"
    Dielectric Strength 15kV/mm
    Dielectric Strength test method ASTM D2671
    Material PO-X
    Material Polyolefin, cross-linked (PO-X)
    Min. Shrink Temperature +275 °F (+135 °C)
    Operating Temperature -103°F to +302°F (-75°C to +150°C)
    ROHS compliant Yes
    Pkg. Qty. 1
    Pkg. Qty. 1EA

    Heat shrink end caps
