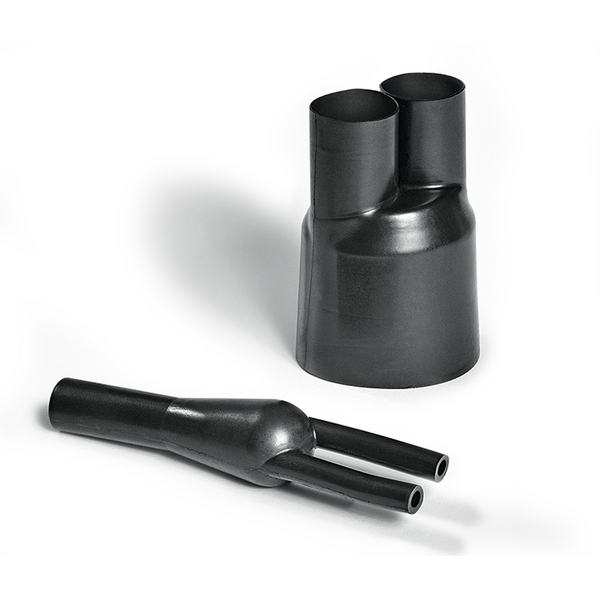

2-Way Outlet Shapes, Breakout Boots
Art.-No. 402-20008 | 220-1-B7-PO-X-BK

Easy, time-saving insulation of cable branch point where it splits into single wires
Adhesive to relieve mechanical tension in cable harnesses

More products in this product group:

Application	Cable breakouts are manufactured from a tough cross-linked flame retarded polyolefin. This allows the breakouts to be used for both interior and exterior applications. They offer excellent electrical and mechanical protection. Cable breakouts are supplied with an adhesive inner coating for reliable environmental sealing, and are available for 2, 3, 4, 5 and 6 core cables.
Brand Family	HELASHRINK
Color	Black (BK)
Description	Helashrink 200 series features branching parts that are used for easy, time-saving insulation of the branch point of a cable where it is split into single wires. Branching parts with adhesive also serve to relieve the mechanical tension in cable harnesses.
PART DESCRIPTION	220-1-B7-PO-X-BK
Packaging Type	bag
Part No.	402-20008
Product family	Insulation
Short Desc.	Heat Shrink Molded Shapes, Helashrink 200 Series, 220-1-B7, PO-X, BK, 1/bag
Type	220-1-B7
UV Resistant	No


⌀H max. b	28.0mm
⌀H min. a	50.0mm
⌀J max. b	8.0mm
⌀J min. a	23.0mm
Flexibility	Semi rigid
For Object Outside Diameter	32.4-45.6 mm
HW ± 20 %	2.5mm
HW ± 20%	.1"
JW ± 20 %	2.0mm
JW ± 20%	.08"
Max. Bundle Diameter (imperial)	0"
Max. Diameter J b	.31"
Max. Recovered Diameter b	1.09"
Min. Bundle Diameter (imperial)	0"
Min. Diameter J a	.9"
Min. Supplied Diameter a	1.95"
Nominal Length S	33.0mm
Nominal S	1.29"
P ± 10 %	175.0mm
P ± 10%	6.83"
Shrink Ratio	up to 3:1

Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Material	PO-X
Material	Polyolefin, cross-linked (PO-X)
Min. Shrink Temperature	+275 °F (+135 °C)
Operating Temperature	-67°F to +275°F (-55°C to +135°C)
ROHS compliant	Yes

Pkg. Qty.	1EA
Pkg. Qty.	1
