3-Way Outlet Shapes, VG style
Art.-No. 403-06012 | 306-1-J-PO-X-BK

Copied

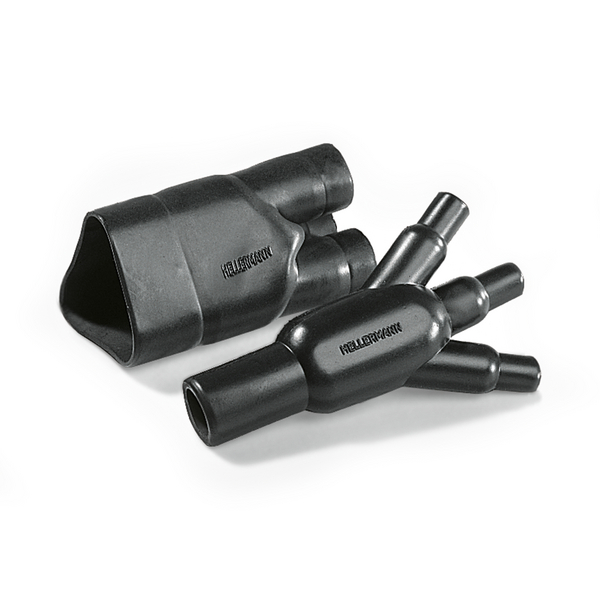

a: Expanded form (supplied)
b: Fully recovered form (after heating)

    • Cable strain relief and mechanical protection at harness transition points
    • All outlets clearly marked to aid orientation during installation
    Add to watchlist
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Brand Family HELASHRINK
    Color Black (BK)
    Description Helashrink 300 series provides cable strain relief and mechanical protection at harness transition points. All outlets are clearly marked to aid orientation on installation.
    PART DESCRIPTION 306-1-J-PO-X-BK
    Packaging Type bag
    Part No. 403-06012
    Product family Insulation
    Short Desc. Heat Shrink Molded Shapes, 300 Series 3-Way Outlet - VG, 306-1-J, PO-X, BK, 1/bag
    Type 306-1-J
    UV Resistant No
    ⌀H max. b 6.5mm
    ⌀H min. a 13mm
    ⌀J max. b 3.5mm
    ⌀J min. a 6.5mm
    ⌀J/K/L max. b 3.5mm
    ⌀J/K/L min. a 6.5mm
    ⌀K max. b 3.5mm
    ⌀K min. a 6.5mm
    Flexibility Flexible
    For Object Outside Diameter 7.8-11.7 mm
    HW ± 20 % 1.5mm
    HW ± 20% .06"
    Max. Bundle Diameter (imperial) 0"
    Max. Diameter J b .14"
    Max. Diameter J/K/L b .14"
    Max. Diameter K b .14"
    Max. Recovered Diameter b .25"
    Min. Bundle Diameter (imperial) 0"
    Min. Diameter J a .25"
    Min. Diameter J/K/L a .25"
    Min. Diameter K a .25"
    Min. Supplied Diameter a .51"
    P ± 10 % 46mm
    P ± 10% 1.79"
    Dielectric Strength 15kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Material PO-X
    Material Polyolefin, cross-linked (PO-X)
    Min. Shrink Temperature +275 °F (+135 °C)
    Operating Temperature -67°F to +275°F (-55°C to +135°C)
    ROHS compliant Yes
    Pkg. Qty. 1
    Pkg. Qty. 1EA
