Low Profile Convolute Boots
Art.-No. 422-00505 | 313C774-6-PO-X-BK

Copied
313C722-774 Series supplied / fully recovered.

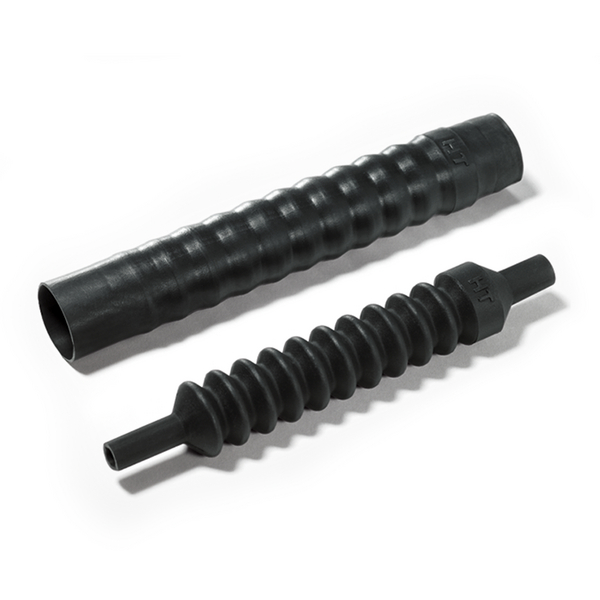

b: Fully recovered form (after heating)
a: Expanded form (supplied)

    • For circular grooved adapters to provide strain relief
    • Excellent environmental sealing with adhesive
    • Convoluted design grants flexibility for different cable outlet angles
    Add to watchlist
    Downloads
    Application Military and general performance harnessing.
    Brand Family HELASHRINK
    Color Black (BK)
    Description Convoluted boot design provides strain relief in applications with partially loaded connectors, resulting in small cable diameters requiring a high shrink ratio.
    PART DESCRIPTION 313C774-6-PO-X-BK
    Packaging Type bag
    Part No. 422-00505
    Short Desc. Heat Shrink Molded Shapes, Low Profile Convolute Boot, 313C774-6, PO-X, BK, 5/bag
    Type 313C774-6
    UV Resistant No
    ⌀H max. b 4.6mm
    ⌀H min. a 77.2mm
    ⌀J max. b 22.8mm
    ⌀J min. a 54.6mm
    B nom. 5.40"
    B nom. 138.4mm
    Flexibility Flexible
    For Object Outside Diameter 19.12-62.68 mm
    Max. Bundle Diameter (imperial) 0"
    Max. Diameter J b .89"
    Max. R 2.43"
    Max. Recovered Diameter b 1.58"
    Min. Bundle Diameter (imperial) 0"
    Min. Diameter J a 2.13"
    Min. Supplied Diameter a 3.01"
    P ± 10 % 236.2mm
    P ± 10% 9.21"
    R max. 62.2mm
    Shrink Ratio 3:1
    Dielectric Strength 20kV/mm
    Flammability ASTM D635
    Material PO-X
    Material Polyolefin, cross-linked (PO-X)
    Min. Shrink Temperature +212 °F (+100 °C)
    Operating Temperature -67°F to +248°F (-55°C to +120°C)
    ROHS compliant Yes
    Pkg. Qty. 5
    Pkg. Qty. 5Pieces
