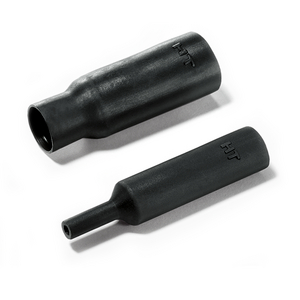

Low Profile Shim Boot without Adapter Lip black
Art.-No. 422-10000
| 313E445-9-PO-X-BK
Copied
- Used to build up or shim a cable diameter
- Facilitates better fit for components in cable harness
More products in this product group:
| Application | Heat Shrinkable Moulded Shapes for use in Electical and Electronic Cable Harness Applications |
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Helashrink 313E series is normally used to build up, or shim a cable diameter to facilitate a better fit for components in a cable harness. |
| PART DESCRIPTION | 313E445-9-PO-X-BK |
| Packaging Type | bag |
| Part No. | 422-10000 |
| Short Desc. | Heat Shrink Molded Shapes, Low Profile Shim Boot, 313E445-9, PO-X, BK, 5/bag |

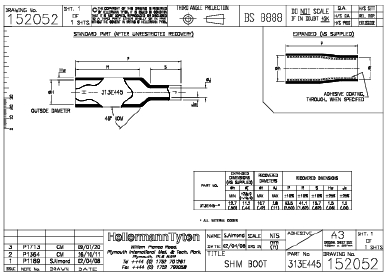

| Type | 313E445-9 |
| UV Resistant | No |
|
|
|
| ⌀H max. b | 12.7mm |
| ⌀H min. a | 12.7mm |
| ⌀J max. b | 3.3mm |
| ⌀J min. a | 11.1mm |
| Flexibility | Flexible |
| For Object Outside Diameter | 12.7-12.7 mm |
| Max. Bundle Diameter (imperial) | 0" |
| Max. Diameter J b | .13" |
| Max. Recovered Diameter b | .50" |
| Min. Bundle Diameter (imperial) | 0" |
| Min. Diameter J a | .43" |
| Min. Supplied Diameter a | .50" |
| P ± 10 % | 63.5mm |
| P ± 10% | 2.48" |
| Shrink Ratio | 3:1 |
