Low Profile Straight Boots
Art.-No. 422-20305 | 313F353-PO-X-BK

Copied

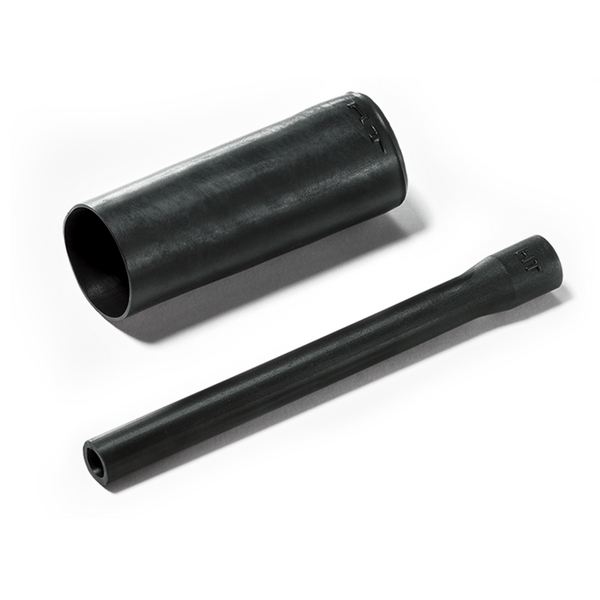

313F322-396 Series supplied / fully recovered.
a: Expanded form (supplied)
b: Fully recovered form (after heating)

    • Connector strain relief for small cable diameters requiring high shrink ratio
    Add to watchlist
    Downloads
    Application Military and general performance harnessing.
    Brand Family HELASHRINK
    Color Black (BK)
    Description This boot provides strain relief in applications with partially loaded connectors, resulting in small cable diameters requiring a high shrink ratio.
    PART DESCRIPTION 313F353-PO-X-BK
    Packaging Type bag
    Part No. 422-20305
    Short Desc. Heat Shrink Molded Shapes, Low Profile Straight Boot, 313F353-9, PO-X, BK, 5/bag
    Type 313F353
    UV Resistant No
    ⌀H max. b 22.1mm
    ⌀H min. a 35.6mm
    ⌀J max. b 10.1mm
    ⌀J min. a 28.7mm
    Flexibility Flexible
    For Object Outside Diameter 24.8-32.9 mm
    Max. Bundle Diameter (imperial) 0"
    Max. Diameter J b .39"
    Max. Recovered Diameter b .86"
    Min. Bundle Diameter (imperial) 0"
    Min. Diameter J a 1.12"
    Min. Supplied Diameter a 1.39"
    P ± 10 % 159.5mm
    P ± 10% 6.22"
    Shrink Ratio 3:1
    Flammability ASTM D635
    Material PO-X
    Material Polyolefin, cross-linked (PO-X)
    Min. Shrink Temperature +212 °F (+100 °C)
    Operating Temperature -67°F to +248°F (-55°C to +120°C)
    ROHS compliant Yes
    Pkg. Qty. 5Pieces
    Pkg. Qty. 5

    Heat shrink end caps

    Heat shrink end cap >
