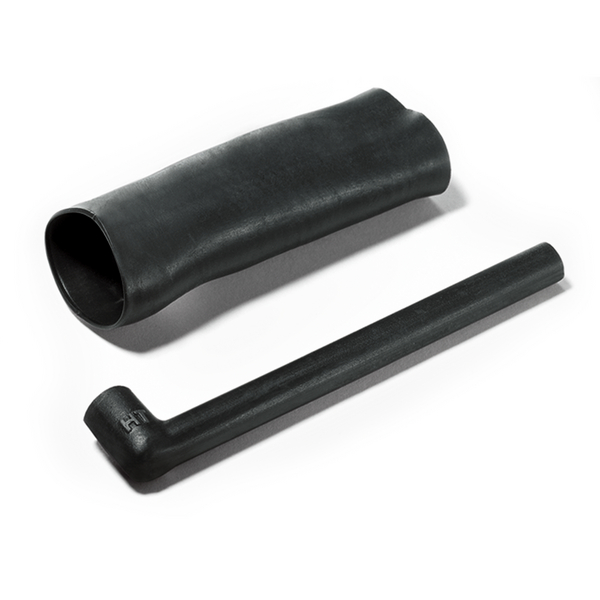

Low Profile Right Angle Boots
Art.-No. 422-30002
| 333F322-PO-X-BK
Copied
- Connector strain relief for small cable diameters requiring high shrink ratio
More products in this product group:
| Application | Heat Shrinkable Moulded Shapes for use in Electical and Electronic Cable Harness Applications |
| Brand Family | HELASHRINK |
| Color | Black (BK) |
| Description | Long-tail right-angle boot design provides strain relief in applications with partially loaded connectors, resulting in small cable diameters requiring a high shrink ratio. |
| PART DESCRIPTION | 333F322-PO-X-BK |
| Packaging Type | bag |
| Part No. | 422-30002 |
| Short Desc. | Heat Shrink Molded Shapes, Long-Tail Right-Angle Boot, 333F322, PO-X, BK, 5/bag |
| Type | 333F322 |
| UV Resistant | No |
|
|
|
| ⌀H max. b | 9.9mm |
| ⌀H min. a | 23.8mm |
| ⌀J max. b | 6.6mm |
| ⌀J min. a | 17.2mm |
| Angle | 90 |
| Flexibility | Flexible |
| For Object Outside Diameter | 12.68-21.02 mm |
| Max. Bundle Diameter (imperial) | 0" |
| Max. Diameter J b | .26" |
| Max. Recovered Diameter b | .39" |
| Min. Bundle Diameter (imperial) | 0" |
| Min. Diameter J a | .67" |
| Min. Supplied Diameter a | .93" |
| P ± 10 % | 105.1mm |
| P ± 10% | 4.10" |
| Shrink Ratio | 3:1 |
