Label, weather resistant/chemical resistance, black, thermal transfer print, 12.7x25.4mm, 2500pcs.
Art.-No. 596-00383
| PLB3P-PET-BK
Copied
- Thermal transfer labels are made with high-performance materials for long-term industrial applications.
- Labels can be printed in any standard thermal transfer printer giving the user options for printing and eliminating the need to be dedicated to one printer model.
- The labels are available in a wide variety of sizes so that finding a label for a particular application is easy.
More products in this product group:
| Application |
The use of our specially formulated adhesive labels printed on thermal transfer printers give the highest quality print clarity. The range of materials are complemented by ribbons developed to suit the needs of most users. The production of labels is very simple. All that is needed is the required label to be selected from our industry leading software TagPrint Pro. |
| Brand Family | PL-Series |
| Color | Black (BK) |

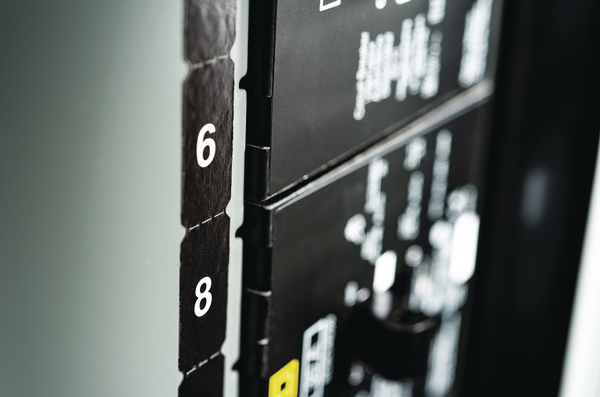

| Description | Phase labels are microperforated between each label so that it can be applied as one strip to the panel or broken into individual labels. |
| Key product features | weather resistant, chemical resistance |
| PART DESCRIPTION | PLB3P-PET-BK |
| Packaging Type | pack |
| Part No. | 596-00383 |
| Print Method | thermal transfer print |
| Short Desc. | Phase label, 1" x .5", PET, Black, 2500/roll |
| Technical Description | Phase label, 1" X .5", PET, Black |
| Type | PLB3P |
| UV Resistant | No |
|
|
|
| Height (imperial) | 0.5" |
| Height (metric) | 12.7mm |
| Horizontal Repeat (imperial) | 1.0" |
| Horizontal Repeat (metric) | 25.4mm |
| Liner Width (imperial) | 3.35" |
| Liner Width (metric) | 85.09mm |
| Max. Bundle Diameter (imperial) | 0" |
| Min. Bundle Diameter (imperial) | 0" |
| Printable Area Height (imperial) | 0.5" |
| Printable Area Height (metric) | 12.7mm |
| Thickness (metric) | 64.0µm |
| Vertical Repeat (imperial) | 0.625" |
| Vertical Repeat (metric) | 15.87mm |
| Width (imperial) | 1.0" |
| Width (metric) | 25.4mm |
Download
| Adhesive | Acrylic |
| CE Certification | No |
| CSA Certified | No |
| Halogen Free | No |
| Material | PET |
| Material | Polyester (PET) |
| Minimum Application Temp. | +50°F (+10 °C) |
| Operating Temperature | -40°F to +300°F (-40°C to +149°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL File Number [Logo] | MH18396 [RU] |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | Yes |
