Article number: 610-02000


EPDM rubber posseses excellent elasticity, high tensile strength, high durability and long service life as well as good chemical resistance. It is also resistant to anti-freeze additives in windscreen washing fluids, automotive grease, oils and soaps.

Certifications & Approvals


EPDM Tubing is used for transporting fluids, for instance in windscreen washer systems in automobiles and washing machines, in noise reduction and in mechanical protection of cables at critical locations.

Special sizes and non-standard Shore-A grades are available on request.

Colour Black (BK)
Package Quantity per metre

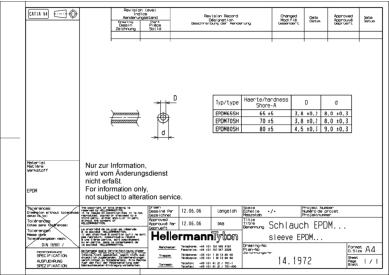

Diameter (D) 3.8mm
Shore Hardness A 70±5
Wall (WT) 2.10mm
Elongation at break min. 400%
ELV compliant (Article 4 - 2) YES
Hazardous good No
Material Ethylene Propylene Diene Terpolymer rubber free of Nitrosamine (EPDM)
Operating Temperature - °C -30 °C to +100 °C
Specifications BMW MV2307, VDO MV4659, VW 2.8.1 TL679
EAN / GTIN 4031026184722
Packaging 1 - Height (m) 0.31m
Packaging 1 - Length (m) 0.405m
Packaging 1 - Qty 250
Packaging 1 - Type reel
Packaging 1 - Volume (m³) 0.05085
Packaging 1 - Weight (kg) 17.26kg
Packaging 1 - Width (m) 0.405m
Packaging 4 - Height (m) 0.964m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 1500
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.925
Packaging 4 - Weight (kg) 156.44kg
Packaging 4 - Width (m) 0.8m
Reel Length 250.0m
Weight 17.26kg
ETIM 6.0 EC002254
ETIM 7.0 Key EC002254
