Fittings for LTP Metallic Conduits with Liquid-Tight Cover
Art.-No. 166-90610
| LTP25-M25-C-NPB/PA6-ML
Copied
- UL Listed to UL514B standards.
- Multipart compression fitting includes nylon seal for ingress protection ratings to IP66 + IP67 + IP68 + IP69
- Durable nickel plated brass material provides high mechanical strength and resistance to oil & corrosion.
- Suitable for knockouts or NPT / Metric threaded entries
- Interchangeable with all LTP series liquid-tight metallic conduits made to UL360 sizes
- Suitable for use in hazardous locations as per NEC Article 501 (B)(2): Class I, Division 2; Article 502 (A)(2) & (B)(2) Class II, Division 1 and 2; and Article 503 (A)(3) & (B)(3) Class III, Divisions 1 and 2.
| Brand Family | HelaGuard® |
| Color | Metal (ML) |

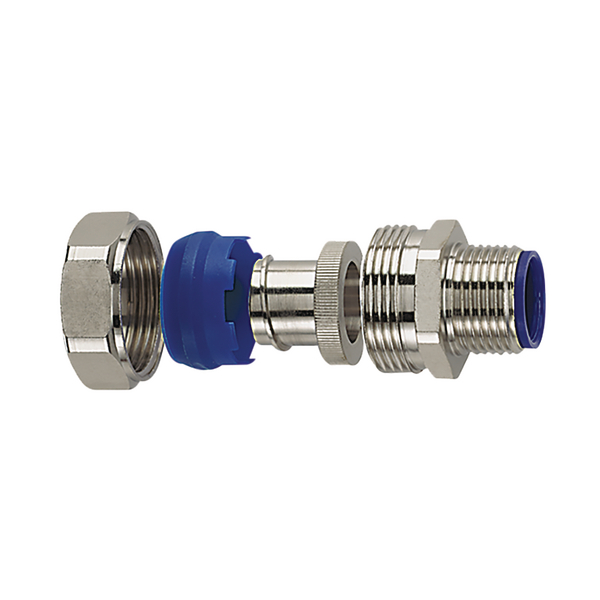

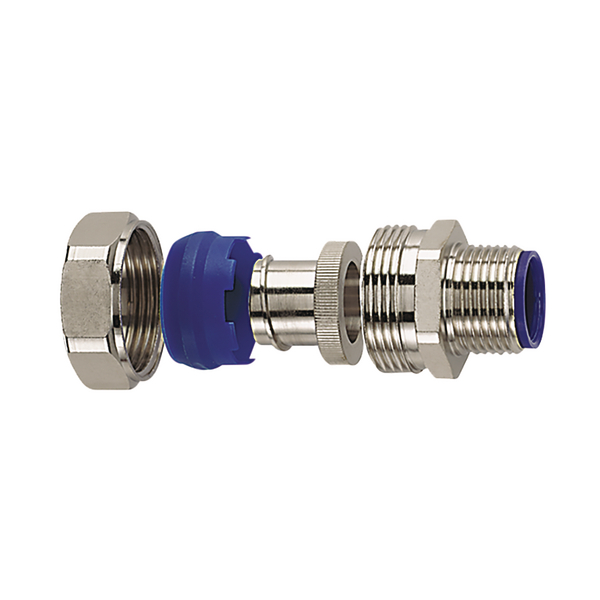

| Description | Multipart straight compresssion fitting with fixed external NPT or Metric threads for liquid-tight performance. Metric threaded fittings supplied with insulated throat which protects conductors from mechanical damage caused by vibration. Constructed with nickel plated brass components that resists corrosion, ensures high mechanical strength and electrical continuity. UL Listed and suitable for hazardous locations as defined by NEC Article 501. Fitting comprised of body, nut, grounding ferrule and nylon compression seal. For use with LTP series liquid tight metallic conduit. |
| PART DESCRIPTION | LTP25-M25-C-NPB/PA6-ML |
| Packaging Type | pack |
| Part No. | LTP25-M25-CUL |
| Short Desc. | HelaGuard® Liquid-Tight Flex Metallic Fitting, Insulated Throat, Straight, M25 Metric Thread, 0.75" (25mm) Dia, NPB, 10/pkg |
| Technical Description | Manufacturer Reference Number: LTP25-M25-CUL |
| Type | LTP25-M25-C |
| UV Resistant | No |
| Bore Diameter (metric) | 18.0 |
| Bore Hole Diameter (imperial) | 0.71" |
| Height (imperial) | 1.38" |
| Height (metric) | 35.0mm |
| Length (imperial) | 1.63" |
| Length (metric) | 41.5mm |
| Nominal Diameter (imperial) | 0.75" |
| Nominal Diameter (metric) | 25.0mm |
| Thread Length (imperial) | 0.59" |
| Thread Length (metric) | 15mm |
| Thread Size (metric) | M25 |
| Thread Type | metric |
| Trade Size | 3/4 " |
| Wrenching Flat Size | 26.5mm |
| Wrenching Flat Size | 1.04" |
Download
| CE Certification | No |
| CSA Certified | No |
| Halogen Free | Yes |
| IP-Rating | IP68 |
| Material | NPB, PA6 |
| Material | Nickel Plated Brass (NPB), Polyamide 6 (PA6) |
| Operating Temperature | -58°F to +275°F (-50°C to +135°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL File Number [Logo] | E247502 [cULus] |
| UL Listed (US and Canada) | Yes |
| UL Listed (US) | Yes |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
