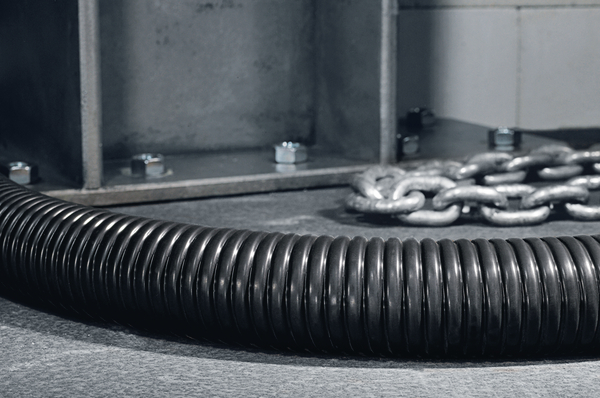

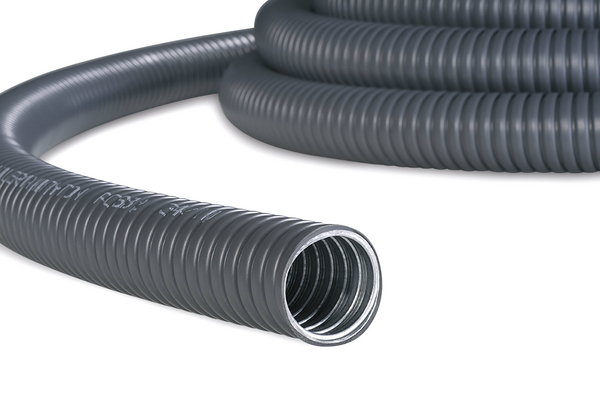

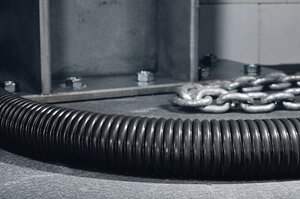

PCS Galvanised Steel Conduit with PVC Coating black ø16mm reel 25m
Art.-No. 166-30702 | PCS16-GS/PVC-BK Details

  • High compression, tensile and impact strength
  • Very flexible
  • Good resistance to alkalis and acids
  • Good resistance to chemicals
Package size
Application Flexible galvanised steel conduit with PVC coating, typically used in machine and plant construction and electrical installations.
Application Tool CONCLAMP
Colour Black (BK)
Conduit Model Metallic with plastic coating
Material Galvanised Steel (GS), Polyvinylchloride (PVC)
Pack Cont. 25m
Package Content packed in reel
PART DESCRIPTION PCS16-GS/PVC-BK
Product Family PCS Galvanised steel conduit, PVC coating
Product Group Metallic conduits with plastic coating
Short Description PCS Galvanised Steel Conduit with PVC Coating black ø16mm reel 25m

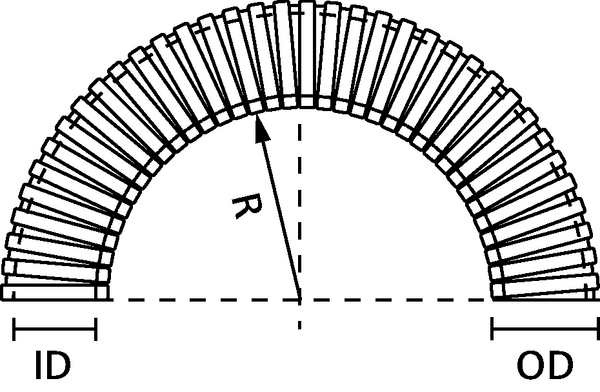

Bending Radius min. (R) 40mm
Diameter (D) 12.9mm
Inside Ø (ID) 13.0mm
Nominal ∅ 16mm
Nominal ∅ 0.63"
Outside Ø (OD) 17.1mm
Weight 196g/m
Weight/Unit 0.2256kg
CE Certification Yes
Electrical characteristics Not specified
ELV compliant (Article 4 - 2) YES
EN61386 Classification 443140652410 (with compression fittings)
Hazardous Goods No
IP-Rating IP66 (in conjunction with HG fittings)
Operating Temperature -15 °C to +70 °C
Specifications
Country of Origin GB
Customs Number 83071000
GTIN-13 / EAN 4031026306735
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.33m
Packaging 1 - Qty 25
Packaging 1 - Type reel
Packaging 1 - Volume (m³) 0.01634
Packaging 1 - Weight (kg) 5.64kg
Packaging 1 - Width (m) 0.33m
Packaging 3 - Height (m) 1.12m
Packaging 3 - Length (m) 1.2m
Packaging 3 - Qty 750
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 1.0752
Packaging 3 - Weight (kg) 173.4kg
Packaging 3 - Width (m) 0.8m
Packaging 4 - Height (m) 1.264m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 750
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.213
Packaging 4 - Weight (kg) 194.4kg
Packaging 4 - Width (m) 0.8m
Reel Length 25m
ETIM 7.0 Key EC001179
ETIM 8.0 Key EC001179
ETIM 9.0 Key EC001179
