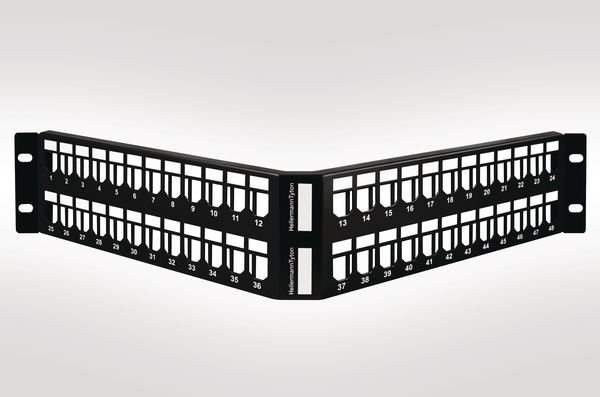

2U Angled
Art.-No. 853-50047 | GSTAPP-2U48XX Details

  • Industry standard keystone apertures
  • Angled design provides increased rack capacity
  • Jack colours and icons (C6A, C6, C5e) are visible when in panel
  • Clear screen printed labelling fields
  • Central panel labelling for each U space
  • Optional rear cable manager available
  • Also available in 2U 72 port, 1U 48 port or 1U 24 port configurations
Show more
Colour Black (BK)
Description The HellermannTyton range of Modular Keystone panels offer exceptional flexibility and performance in an angled or flat format in 2U 48 port, 2U 72 port, 1U 48 port and 1U 24 port configurations. The Modular Keystone panels offer industry standard apertures and are compatible with the HellermannTyton range of GST keystone jacks. The use of individual keystone jacks means that installation is straight forward and allows an individual jack to be removed if required. The angled design of the panel removes the need for the use of front cable management increasing capacity by up to 50%. The Modular Keystone panel is supplied without fixings, the panel is also available with Rack Snap Mountings, a Cage Nut Kit or12 – 24 rack screws if required. An optional rear cable manager is also available.
Package Content packed in box
PART DESCRIPTION GSTAPP-2U48XX
Performance Category Modular
Port count 48
Product Family 2U Angled
Product Group Modular Unshielded 48 Port Panel
Technical Description Manufactured from black powder coated mild steel. The angled presentation increases rack capacity by allowing patchcords to be directed to the vertical cable management and aids correct cable bend radius. The Modular panels are designed to accept HellermannTyton Connectivity's unshielded keystone jacks which are available in CAT6A, CAT6 & CAT5e. They are supplied as standard unloaded but include rack snaps for fast cabinet installation. The rear cable management bar is sold separately

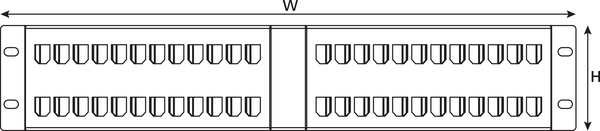

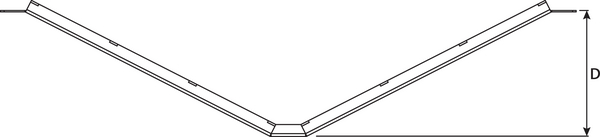

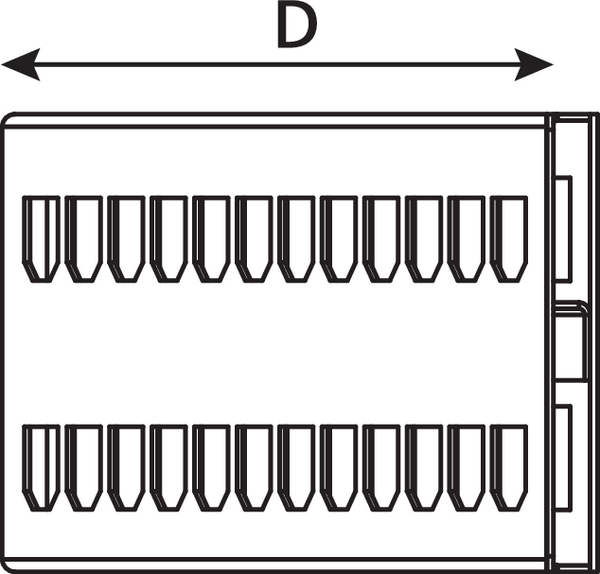

Depth (D) 106mm
Height (H) 88mm
Width (W) 483mm
Country of Origin GB
Dimensions W x H x D 483 mm x 88 mm x 106 mm
GTIN-13 / EAN 5022660122484
ETIM 8.0 Key EC000264
ETIM 9.0 Key EC000264
