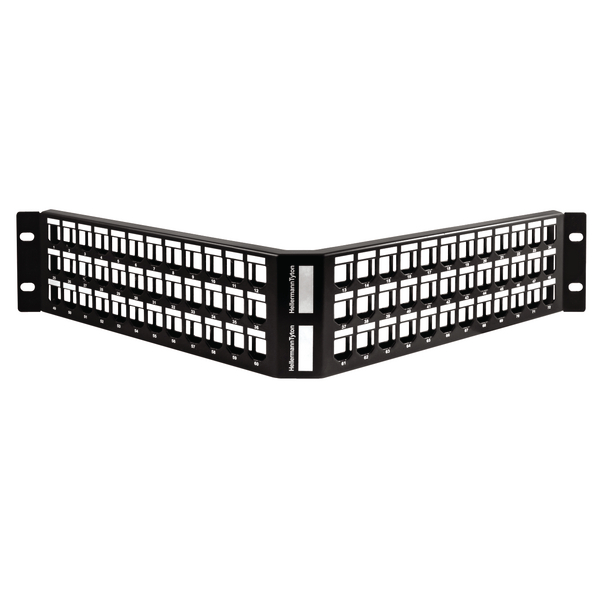

Modular Unshielded 72 Port Panel  GSTAPP-2U72SC

2U Angled, Article number: 853-50057

Features

  • Industry standard keystone apertures
  • Angled design provides increased rack capacity
  • Jack colours and icons (C6A, C6, C5e) are visible when in panel
  • Clear screen printed labelling fields
  • Central panel labelling for each U space
  • Supplied 12 - 24 Rack Screws
  • Optional rear cable manager available
  • Also available in 2U 48 port, 1U 48 port or 1U 24 port configurations
Colour Black (BK)
Description The HellermannTyton range of Modular Keystone panels offer exceptional flexibility and performance in an angled or flat format in 2U 48 port, 2U 72 port, 1U 48 port and 1U 24 port configurations. The Modular Keystone panels offer industry standard apertures and are compatible with the HellermannTyton range of keystone jacks. The use of individual keystone jacks offers a balanced system performance and also provides simple installation and maintenance allowing individual jack to be removed if required. The angled presentation increases rack capacity by allowing patchcords to be directed to the vertical cable management and aids correct cable bend radius. Optional rear cable manager is also available and is sold separately.
GLOBAL PART DESCRIPTION GSTAPP-2U72SC
Pack Cont. 1
Package Quantity per box
Panel Fixing Method 12 – 24 Rack Screws
Performance Category Modular
Port count 72
Product Family 2U Angled
Product Group Modular Unshielded 72 Port Panel
Short Description 2U 72 Port Unshielded Keystone Patch Panel
Technical Description Manufactured from black powder coated mild steel. The angled presentation increases rack capacity by allowing patchcords to be directed to the vertical cable management and aids correct cable bend radius. The Modular panels are designed to accept HellermannTyton Connectivity's unshielded keystone jacks which are available in CAT6A, CAT6 & CAT5e. The rear cable management bar is sold separately.
Depth (D) 106mm
Height (H) 88mm
Height, Units 2U
Width (W) 483mm
Dimensions W x H x D 483 mm x 88 mm x 106 mm
EAN / GTIN 5022660122880
UNSPSC Key 43223309
