19/03/2024

1U 24 Port Sliding Panel
Art.-No. 853-55001 | PP24G6A-PA1URS-SL.XX Details

This product is not available anymore.
  • 24 shielded Deca¹⁰ Category 6A/6 ports in 1U
  • Dual labelling fields
  • 360° shielding eliminates alien crosstalk
  • Supplied with Cage Nuts
  • Also available as a fixed panel
Show more
Colour Black (BK)
Description The Modular FTP Sliding Patch Panel is designed to provide a complete shielded solution and accepts 24 shielded Deca¹⁰ Category 6A/6 keystone jacks in 1U of space offering 24 RJ45 ports. The patch panel is fitted with an integral earthing plate and includes a rear cable management system. The shielded Category 6A/Category 6 products are designed to support any data or voice protocol that is capable of utilising a Category 6A/Category 6 cabling system.
Pack Cont. 1pc.
PART DESCRIPTION PP24G6A-PA1URS-SL.XX
Performance Category Category 6A (Class EA)
Port count 24
Product Family 1U 24 Port Sliding Panel
Product Group Cat6A Keystone Sliding Patch Panel
Technical Description The patch panel is manufactured from black powder coated mild steel and the integral earthing plate is galvanised mild steel. The integral earthing plate bonds each keystone jack to earth eliminating opportunities for alien cross talk to ensure 360° shielding. The Modular FTP Keystone Sliding Patch Panel is supplied with a Cage Nut Kit as standard.
Depth (D) 192.0mm
Height (H) 44.0mm
Height, Units 1U
Width (W) 483.0mm
Country of Origin GB

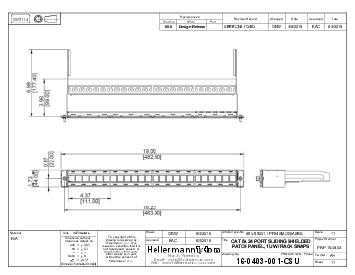

Dimensions W x H x D 483.0 mm x 44.0 mm x 192.0 mm
GTIN-13 / EAN 5022660993206
ETIM 8.0 Key EC000264
ETIM 9.0 Key EC000264
UNSPSC Key 39121444
