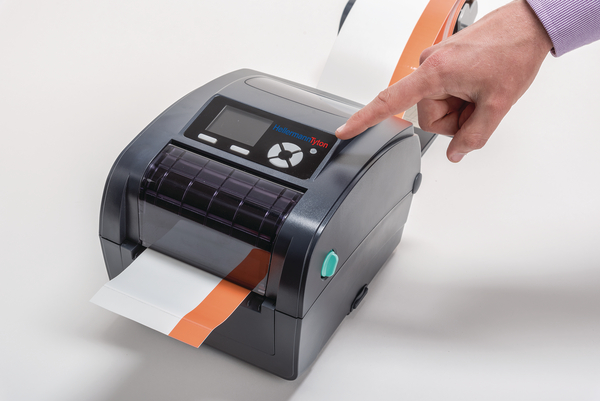

Thermal transfer printer, desktop, 300dpi, black


Art.-No. 556-00230

| TT230SM-PL-BK

 |

Copied
TT230SM
1345702

    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Plastic (PL)
    PART DESCRIPTION TT230SM-PL-BK
    Package Content 1pc.
    Package Content packed in pack
    Print Method thermal transfer print
    Print resolution DPI 300dpi
    Type TT230SM
    UV-Stabilised No
    Depth (D) 279.4mm
    Height (H) 172.0mm
    Label Width Max (imperial) 4.40"
    Label Width Min (imperial) 1.0"
    Label Width min - max 25.4 - 111.8 mm
    Length (L) 279.4mm
    Print Material Height Max (metric) 990.6mm
    Print Material Width Max (metric) 111.76mm
    Print Material Width Min (metric) 25.4mm
    Width (W) 201mm
    CE Certification Yes
    CSA Certified No
    Max. Print Width 4"
    Max. Print Width 101.6mm
    Operating Temperature +4 °C to +40 °C
    Printer Memory 8MB RAM
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UL-File Number E178707
    Country of Origin CN
    Dimensions W x H x D 201mm x 172.0mm x 279.4mm
    GTIN-13 / EAN 4031026408118
    Packaging 1 - Qty 1
    Packaging 1 - Type pack
    Packaging 1 - Weight (kg) 6.8kg
    Storage Temperature -34 °C to +71 °C
    ETIM 7.0 Key EC001672
    ETIM 8.0 Key EC001672
    ETIM 9.0 Key EC001684
    UNSPSC Key 43212108
    Variant desktop

    Accessories

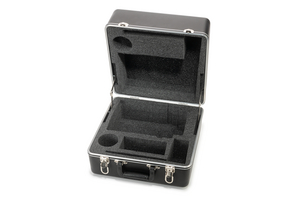

    CASE230SM 556-00231
    Add to watchlist

    Solutions

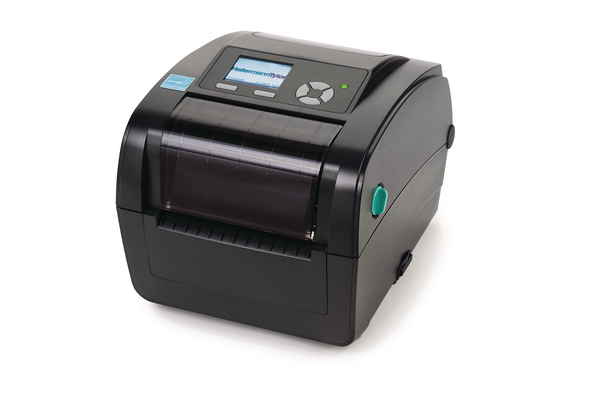

    Thermal transfer printer TT431 Thermal transfer printer TT431
