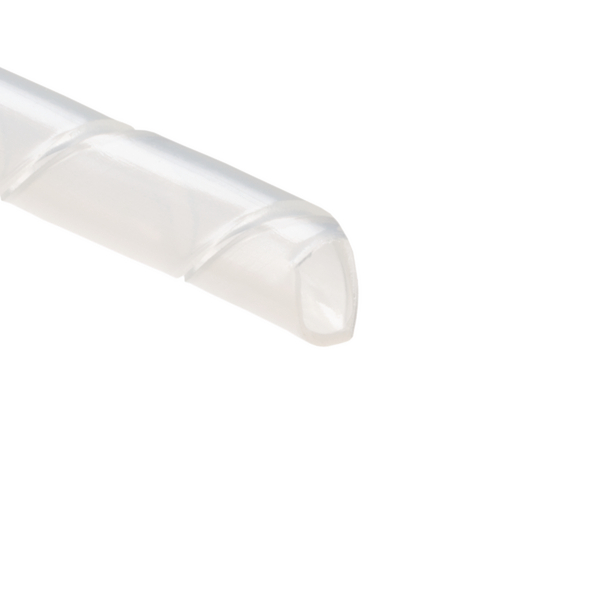

Spiralwrap
Art.-No. 161-05035 | 2N-PA6-NA

Copied
Spiralwrap protective sheathing is reusable and resistant to most chemicals.
Spiral binding

    • Sheathing allows flexible routing and lead-out of cables
    • The inner edges are beveled preventing damage to cables
    • Sheathing is reusable and resistant to most chemicals
    • Spiralwrap is U.L. Recognized
    Package size
    Add to watchlist
    Downloads
    Brand Family N-Series
    Color Natural (NA)
    Description HellermannTyton Spiralwrap provides an effective means for routing and securing wires around corners and bends, and helps keep wires out of pinch points within moving panel doors. Spiralwrap is installed using a gapped or butted installation which impacts harnesses flexibility, wire coverage and abrasion resistance. A gapped installation leaves space between the sheathing to accommodate breakouts and adds flexibility to the harness. A butted installation wraps tightly around the bundle to provide greater abrasion resistance and add rigidity. Natural PA6 nylon material is recommended for use within enclosed environments where possibility of fire exists. Black PA6 nylon material is suitable for outdoor applications and can be used in direct sunlight for extended periods of time.
    PART DESCRIPTION 2N-PA6-NA
    Packaging Type pack
    Part No. 2N9M
    Short Desc. Spiralwrap Protective Sheathing, 0.25" Diameter, PA6, Natural, 1000ft/roll
    Type 2N
    UV Resistant No
    Diameter (imperial) 0.25"
    Diameter (metric) 5.1mm
    Length (imperial) 1000.0ft
    Length (metric) 304.8m
    Max. Bundle Diameter (imperial) 2"
    Max. Bundle Diameter (metric) 50.8mm
    Min. Bundle Diameter (imperial) 0.19"
    Min. Bundle Diameter (metric) 4.75mm
    Nominal Diameter (imperial) 0.25"
    Nominal Diameter (metric) 6.35mm
    Pitch (imperial) 0.375"
    Pitch (metric) 9.53mm
    Reel Length (imperial) 1000.0ft
    Trade Size 1/4 "
    Wall Thickness (imperial) .025"
    Wall Thickness (metric) 0.64mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Material PA6
    Material Polyamide 6 (PA6)
    Operating Temperature -40°F to +250°F (-40°C to +121°C)
    Prop65 Warning No
    REACH Conformity No
    ROHS compliant Yes
    UL Recognized (US) No
    Customs Number (Schedule B) 3926909988
    Harmonized Tariff Schedule Code 3926.90.9989
    Pkg. Qty. 1000ft
    Pkg. Qty. 304.8m
    Cable wraps, spiral wraps Cable wraps, spiral wraps

    Cable wraps, spiral wraps

    From standard spiral hoses for office use to flame retardant spiral cable wraps to heat and chemical resistant cable wraps for industry: Discover our portfolio here.
