CTPPFR120-PPFR-OG
Art.-No. 169-60123 | CTPPFR120-PPFR-OG |

Copied

    Add to watchlist
    Downloads
    Colour Orange (OG), High Voltage (HV)
    Material Polypropylene, flame retardant (PPFR)

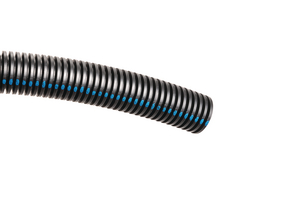

    PART DESCRIPTION CTPPFR120-PPFR-OG
    Pack Cont. 335.28m
    Package Content packed in carton
    Type CTPPFR120
    Variant Slit
    ⌀ (D2) 13.11mm
    ⌀ D 0.70"
    ⌀ D2 0.516"
    Diameter (D) 17.78mm
    Inner Diameter D (Imperial) 0.516"
    Inside ⌀ (ID) 13.11mm
    Length (L) 335.3m
    Nominal ⌀ 1/2"
    Nominal ⌀ 12.70mm
    Outside ⌀ (OD) 17.78mm
    Outside ⌀ (OD) 0.70"
    Outside ⌀ (OD2) 0.70"
    Outside ⌀ (OD2) 17.78mm
    Wall (WT) 0.127mm
    Wall (WT) 0.005"
    CE Certification No
    CSA Certified No
    Flammability Self-extinguishing in 60 seconds
    Halogen-free No
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin CA
    GTIN-13 / EAN 4031026689029
    Packaging 1 - Type carton
    UNSPSC Key 39131601
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
