28/03/2024

IT Ties

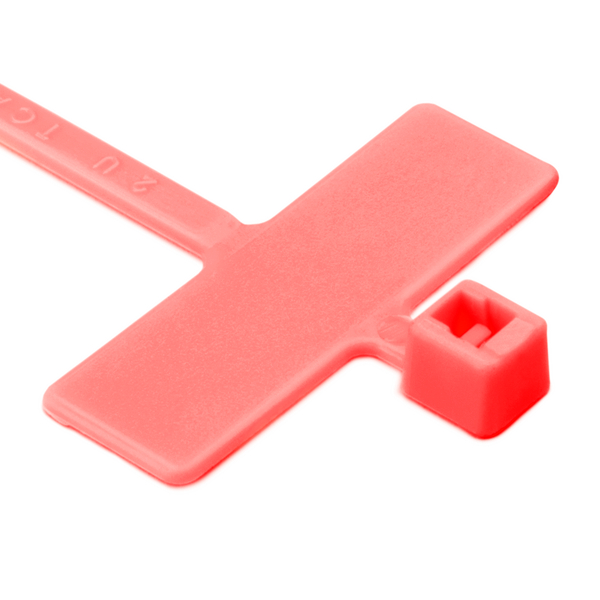

Art.-No. 111-81812 | IT18R-PA66-RD Details

  • Identification ties made of Polyamide 6.6
  • For simple identification and securing of cable bundles in one step
  • Printable labels are available for a professional finish
  • Manual or temporary marking is possible with an indelible pen (T82S-BK / T82R-RD)
Package size
Application One of the major benefits is the ability to both secure and identify cable bundles at different times.
Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
Application Tool MK3PNSP2, MK3SP, MK7P, MK20, EVO7i
Colour Red (RD)
Fixation Method None
Identification Plate Position attached to bundle
Material Polyamide 6.6 (PA66)
Pack Cont. 100pcs.
Package Content packed in bag
PART DESCRIPTION IT18R-PA66-RD
Product Family IT Ties
Product Group Identification ties and plates for marking cable bundles
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Variant Inside Serrated
With label space Yes
Bundle Diameter max (metric) 19.0mm
Bundle ∅ 4.8-19.0mm
Bundle ∅ min. 4.8mm
Height (H) 8.0mm
Length (L) 100.0mm
Min.Tensile Strength 80N
Outside ∅ max (OD max.) 22.00mm
Outside ∅ max. 0.87"
Outside ∅ min. 0.24"
Outside ∅ min. (OD min.) 6.00mm
Print Method manual marking
Width (W) 25.0mm
Width (W2) 2.4mm
CE Certification Yes
CSA Certified No
Flammability UL 94 V2
Halogen-free Yes
Operating Temperature -40 °C to +85 °C
Specifications
Specifications CAGE Code 53421, UL-ZODZ2.E64139
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number E64139
US Gov. Designation MS3368-5-2E, SAE-AS33681
UV-Stabilised (Yes/No) No
Country of Origin US
GTIN-13 / EAN 4031026422237
Packaging 3 - Height (m) 0.212725m
Packaging 3 - Length (m) 0.51435m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0347
Packaging 3 - Width (m) 0.3175m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
Recommended Labels TAG23-06TD1
UNSPSC Key 39121703
