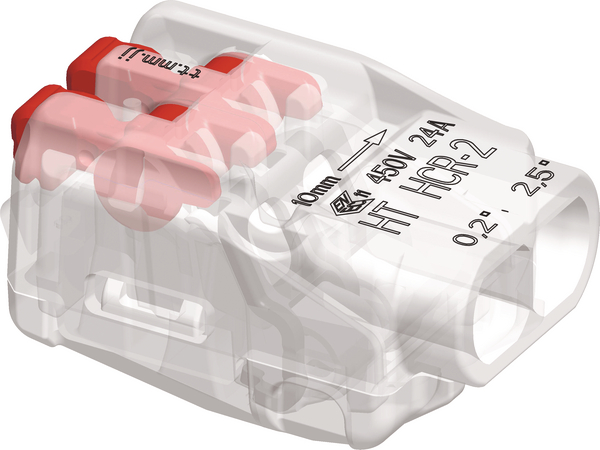

Push-in wire connector, 2 conductors, 0.2 to 2.5 mm² all types of wire, transparent, 100pcs.
Art.-No. 148-90043
| HCR-2-PC-CL
|
Copied
- Universal push-in wire connector for solid, stranded and fine-stranded wires
- Solid wires simply push-in. No need to open lever
- Compact size connector
- Wire clamping range: 0.2 - 2.5 mm²
- Separate voltage test entry on the bottom
- Fully re-useable. No screwdriver required
- For proper fixing that can be visually checked through transparent housing
- Safe application, installation and maintenance
More products in this product group:
| Application | The HelaCon Releasable connectors are used for all types of wire to connect cable and conductors in the field of electrical installation. The connectors can be used in all kinds of junction boxes either on-wall or flush-mounted. HelaCon offers the best possible solution when convenient processing and maximum safety is required. |
| Colour | Transparent (CL) |
| Material | Polycarbonate (PC) |
| Max Current | 24A |
| Max Voltage | 450V |
| Number of Conductors | 2 |
| PART DESCRIPTION | HCR-2-PC-CL |
| Package Content | 100pcs. |
| Package Content packed in | box |
| Product Family | HelaCon Releasable |
| Product Group | Connectors - For all Types of Wire |
| Short Description | HelaCon Releasable wire connector for all types of wire. |
| Suitable for flexible core (Yes/No) | Yes |
| Suitable for multi wire core (Yes/No) | Yes |
| Suitable for solid core (Yes/No) | Yes |
| Type | HCR-2 |
| Weight/Unit | 0.002kg |
Download
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V0 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -30 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | 2014/35/EU, csa C22.2 No. 188-13, EN 60998-1:2005-05-01, EN 60998-2-2:2005-05-01, UL 486C |
| UL OCD link | Link |
| UL-File Number | E316080 |
|
|
|
| Country of Origin | AT |
| Customs Number | 85369010 |
| GTIN-13 / EAN | 4031026547954 |
| Packaging 1 - Height (m) | 0.054m |
| Packaging 1 - Length (m) | 0.098m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | pack |
| Packaging 1 - Volume (m³) | 0.000518616m³ |
| Packaging 1 - Weight (kg) | 0.222kg |
| Packaging 1 - Width (m) | 0.098m |
| Packaging 3 - Height (m) | 0.202m |
| Packaging 3 - Length (m) | 0.291m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0118m³ |
| Packaging 3 - Weight (kg) | 4.94kg |
| Packaging 3 - Width (m) | 0.201m |
| Packaging 4 - Height (m) | 1.154m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 120000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.108m³ |
| Packaging 4 - Weight (kg) | 317.4kg |
| Packaging 4 - Width (m) | 0.8m |
