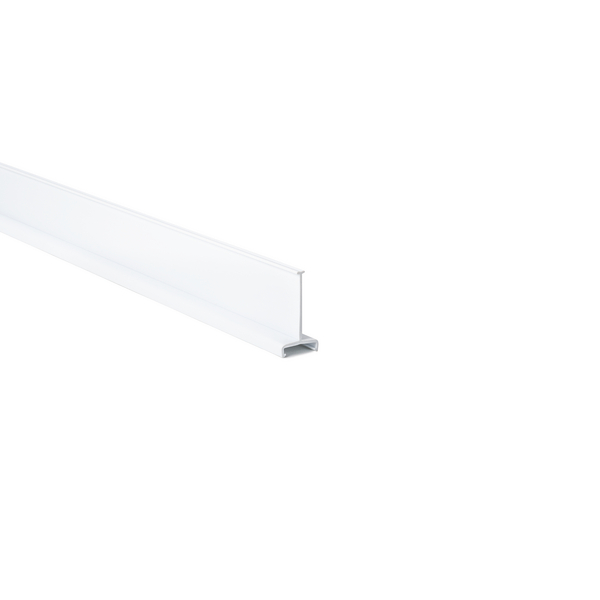

Accessory, white, 36.58m (DV1.5)
Art.-No. 181-00306 | DV1.5-PVC-WH

Copied
Dividers have continuous score lines for smooth breakouts.

    • Dividers have continuous score lines for smooth breakouts.
    • Top of the dividers has a double-sided lip which reduces the likelihood of wires falling out during installation.
    Add to watchlist
    Downloads
    Color White (WH)
    Description Solid-Wall Dividers can be securely mounted into all types of HellermannTyton wiring duct to separate high and low voltage, thus reducing interference. The dividers simply snap or slide into the specially designed mount, instantly creating multiple channels within a single duct size.
    PART DESCRIPTION DV1.5-PVC-WH
    Packaging Type carton
    Part No. 181-00306
    Product family Slotted Wall Wiring Duct, Solid Wall Wiring Duct
    Short Desc. Wiring Duct Divider, 1.5" High, PVC, White, 120 ft/carton
    Technical Description Wiring Duct Divider, 1.5" High, White
    Type DV1.5
    UV Resistant No
    Height (imperial) 1.40"
    Height (metric) 35.6mm
    Height 2 (imperial) .23"
    Height 2 (metric) 5.80mm
    Length (imperial) 6.0ft
    Length (metric) 1.83m
    Max. Bundle Diameter (imperial) 0"
    Min. Bundle Diameter (imperial) 0"
    Thickness (imperial) 0.06"
    Thickness (metric) 1.52mm
    Width (imperial) 0.75"
    Width (metric) 19.05mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V-0
    Halogen Free No
    Material PVC
    Material Polyvinylchloride (PVC)
    Operating Temperature +122°F (+50°C)
    Prop65 Warning No
    REACH Conformity No
    ROHS compliant Yes
    UL File Number [Logo] E64139 [RU]
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) Yes
    Customs Number (Schedule B) 3925900000
    Harmonized Tariff Schedule Code 3925.90.0000
    Pkg. Qty. 120.0ft
    Pkg. Qty. 36.58m

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
