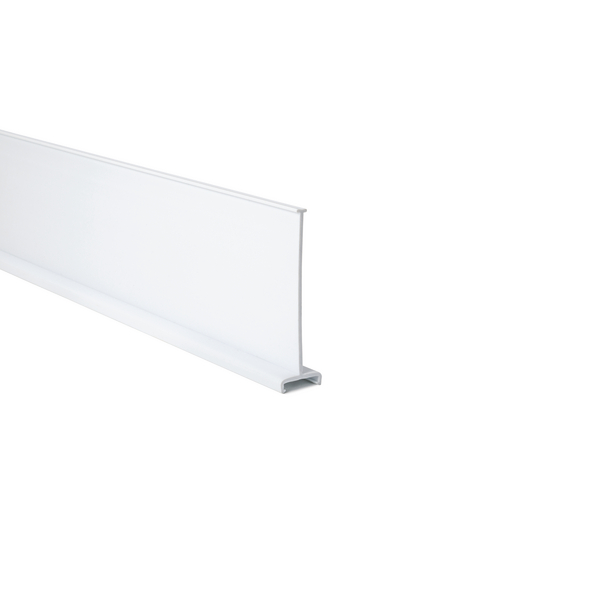

Accessory, white, 36.58m (DV3)
Art.-No. 181-00308 | DV3-PVC-WH |

Copied
Dividers have continuous score lines for smooth breakouts.

    • Dividers have continuous score lines for smooth breakouts.
    • Top of the dividers has a double-sided lip which reduces the likelihood of wires falling out during installation.
    Add to watchlist
    Downloads
    Colour White (WH)
    Description Solid-Wall Dividers can be securely mounted into all types of HellermannTyton wiring duct to separate high and low voltage, thus reducing interference. The dividers simply snap or slide into the specially designed mount, instantly creating multiple channels within a single duct size.
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION DV3-PVC-WH
    Package Content 36.58m
    Package Content packed in carton
    Product Family Wiring Duct Dividers
    Product Group Duct Dividers
    Type DV3
    UV-Stabilised No
    Height (H) 72.40mm
    Height (H2) 6.10mm
    Length (L) 1.83m
    Thickness (T) 1.78mm
    Width (W) 19.56mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V0
    Halogen-free No
    Operating Temperature +50 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    Specifications EN 50085-1:2005 + A1:2013, EN 50085-2-3_1A, UL
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) Yes
    UL-File Number E64139
    Country of Origin US
    Customs Number 3925902000
    GTIN-13 / EAN 4031026669267
    Packaging 1 - Qty 20
    Packaging 1 - Type carton
    Packaging 3 - Height (m) 0.117475m
    Packaging 3 - Length (m) 1.86055m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0399m³
    Packaging 3 - Width (m) 0.1825625m
    UNSPSC Key 39131713

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
