Automatic Cable Tying Systems : T30RA

Cable ties for AutoTool 2060, Article number: 103-00001

Features

  • Available in reels of 3,500 cable ties
  • Repetitive tension on the bundles
  • Easily recyclable

Certifications & Approvals

Application

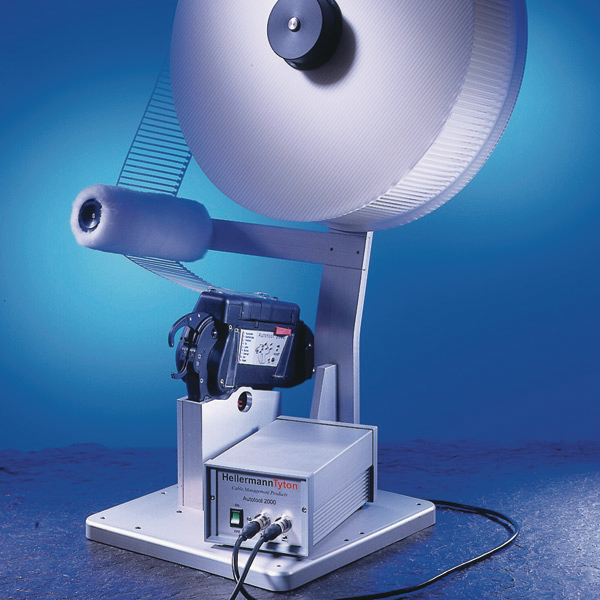

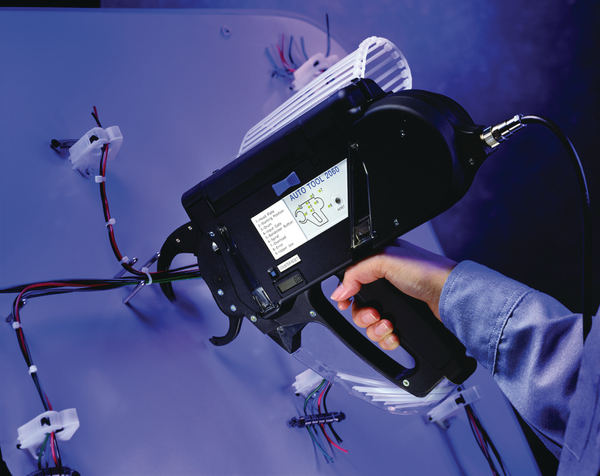

The inside-serrated cable ties are designed for use specifically in the automatic cable tying systems. The Autotool 2060 is ideally suited for handling high volumes applications in wire harness facilities, automotive and industrial companies as wells as the packaging sector.

Colour Natural (NA)
Identification Plate Position none
Pack Cont. 3000
Package Quantity per reel
PART DESCRIPTION T30RA-PA66-NA
Product Family Cable ties for AutoTool 2060
Product Group Automatic Cable Tying Systems
Releasable Closure (Yes/No) No
Tool suitable cable tie material Plastic
Bundle ∅ max. 31.75mm
Bundle ∅ min. 1.5mm

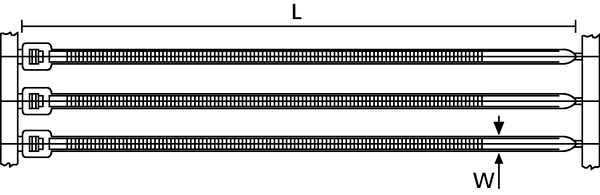

Length (L) 152.4mm
Min.Tensile Strength 135.0N
Thickness (T) 1.2mm
Width (W) 3.6mm
Flammability UL 94 V2
Halogenfree Yes
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
Specifications CAGE Code 53421, UL-ZODZ2.E64139
UL Listed (US and Canada) No
UL OCD link ZODZ.E64139
ZODZ2.E64139
ZODZ7.E64139
ZODZ8.E64139
UL Recognized (US and Canada) Yes
UL-File Number E64139
US Gov. Designation MS3367-5-9
EAN / GTIN 4031026423951
Reel Diameter 17.7"
Reel Diameter 450.0mm
Reel Weight 7lbs
Reel Weight 3.175kg
Reel Width 7.197"
Reel Width 182.8mm
Weight 3.9lbs
Weight 1.8kg
UNSPSC Key 39121703
